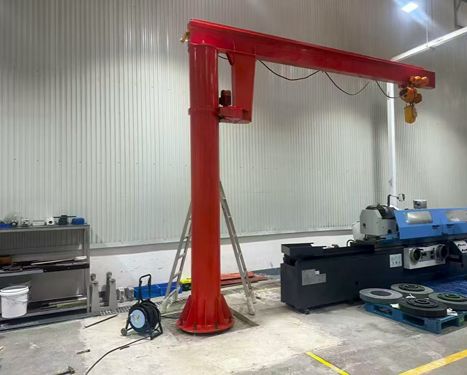

Core Advantages of Column-Mounted Jib Crane PrefaceThe column-mounted jib crane is a light-duty lifting equipment designed for fixed-point and high-frequency handling. It relies on an independent fixed column and rotating jib to transport materials. Unlike overhead and gantry cranes, it requires no complex tracks and occupies minimal floor space, making full use of factory corner areas. It is ideal for short-distance lifting tasks including workstation assembly, workpiece transfer and warehouse loading/unloading. With flexible selection, it can be equipped with electric chain hoists and supports manual or electric rotation. Widely used in machinery processing, auxiliary metallurgy lines, warehousing and equipment maintenance. Featuring stable performance and moderate investment cost, it serves as a preferred lifting solution for SMEs to improve workstation material handling efficiency.
1. Compact Structure & Ultra-high Space Utilization
The column-mounted jib crane is installed with an independent floor-standing column. The whole machine has a compact and simple structure. No overhead travelling tracks or top load-bearing steel beams are required, and the foundation occupies a small area without taking up the main workshop passage. The rotatable jib forms a circular working coverage area, making full use of idle spaces such as factory corners and low workstations that large cranes cannot reach. It can be flexibly arranged for both new workshop planning and renovation of old factories. It will not damage the original main structure of the workshop. An independent lifting unit can be built within limited space to free up more production areas, help enterprises optimize workshop layout and maximize site utilization value.
2. Flexible Operation & Comprehensive Coverage
This jib crane supports 360° rotation with optional manual or electric rotation modes. The rotation runs smoothly without blind working zones. The jib length can be customized according to requirements to adapt to material lifting within different radii. Fixed at the workstation, the crane body does not need to be moved as a whole to realize multi-directional workpiece handling. For short-distance reciprocating lifting conditions such as production line assembly and component loading/unloading, it can achieve fast positioning and precise hoisting and lowering. Compared with forklifts and large overhead cranes, it eliminates the steps of moving vehicles and adjusting trolley positions, greatly improving the flexibility of material transfer at single workstations and meeting fixed-point hoisting requirements for various workpieces.
3. Simple Operation & Low Entry Threshold
The column-mounted jib crane is equipped with dual control schemes of wired pendant or wireless remote controller with clear and intuitive buttons and simple operation logic. Operators can start work after brief training without complicated lifting operation certificates. Lifting and rotation movements are controlled independently. Variable frequency speed regulation is optional for soft start and stop of heavy loads, effectively reducing workpiece shaking and improving alignment accuracy. All operations are completed on the ground with no risk of high-altitude work. It has a low learning curve, and ordinary workshop workers can master it quickly, reducing staff training time and costs for enterprises and ensuring continuous and efficient workstation lifting operations.
4. Easy Installation & Wide Scene Adaptability
Adopting a modular split design, the crane has components easy to transport separately and simple to assemble on site. Only a small concrete foundation is required to fix the column, without large-scale civil construction. The installation and commissioning cycle is short for quick production startup. It can be installed in indoor workshops and outdoor yards, suitable for new factories as well as old plant renovation. For special working conditions, explosion-proof and anti-corrosion versions can be customized for chemical, food, metallurgy and other industries. It is not greatly restricted by workshop height and original building structure. With strong universality, it can meet fixed-point lifting requirements for workstations in all walks of life.
5. Stable Performance & High Safety Factor
The main body is made of high-strength steel with good rigidity and strong deformation resistance, so it is not easy to damage under long-term continuous operation. Multiple safety protection devices are standard, including overload protection, upper and lower travel limiters, emergency stop buttons and anti-hook-slip brake devices. In case of overload, over-travel and other abnormalities, the system will automatically trigger protection shutdown to avoid safety accidents. The matched electric hoist features reliable braking and low operating noise. The whole machine runs without dust pollution and meets industrial environmental protection requirements. Multi-layer protection reduces lifting risks and ensures the safety of personnel, workpieces and equipment during long-time continuous operation.
6. Simple Maintenance & Low Operating Cost
The jib crane has a simple structure with a high proportion of standardized parts and no complex precision components. Daily maintenance workload is light. Operators only need to fasten bolts, lubricate rotating parts and inspect electrical circuits regularly. There are few types of wearing parts with low purchase cost and quick replacement, resulting in short downtime for maintenance. Compared with overhead cranes, the whole machine consumes less power, and variable frequency configuration further saves electricity. It has a long service life and anti-aging performance without frequent major overhaul. The initial investment is moderate, and later maintenance cost is low. It has obvious advantages in comprehensive operating cost and helps enterprises continuously cut production expenses.
7. High Efficiency & Production Capacity Improvement
This equipment is specially developed for short-distance and high-frequency lifting at workstations. It replaces manual handling and repeated forklift transfer and significantly speeds up workpiece loading and unloading. With precise lifting positioning, it reduces invalid processes such as repeated adjustment and secondary handling of workpieces, shortens the loading/unloading time of single materials and accelerates production line flow. The variable frequency drive system realizes stable start and brake with small impact load and lower power consumption. Its continuous and stable workstation lifting capacity matches the non-stop production rhythm of assembly lines, reduces workstation waiting time, helps factories increase overall production capacity and achieve cost reduction and efficiency improvement.
8. High Customization & Personalized Working Condition Adaptation
The column-mounted jib crane supports multi-dimensional customization. Rated load capacity, jib length and column height can be determined according to customers’ working conditions. Driving options include manual rotation, electric rotation and variable frequency speed regulation. For special operating environments, anti-corrosion, explosion-proof, dust-proof and high-temperature-resistant models are available for complex working conditions such as chemical, metallurgy and outdoor applications. The rotation angle, installation type and control mode of the equipment can be adjusted as required. The modular customization scheme can fit different workshop layouts and production processes, enabling one machine to adapt to various working scenarios and fully meet customers’ diversified and personalized lifting requirements.
ConclusionIn
conclusion, with eight core advantages including small footprint, simple operation, wide adaptability, high safety and stability, low energy consumption, easy maintenance, high efficiency and strong customizability, the column-mounted jib crane perfectly makes up for the shortcomings of traditional cranes such as site restriction, high cost and poor flexibility, making it an ideal device for small and medium-sized fixed-point high-frequency lifting operations. Its excellent cost performance and practicality help enterprises optimize production processes, reduce costs and improve efficiency, adapt to various industrial production scenarios, and possess good market application value.
