Introduction

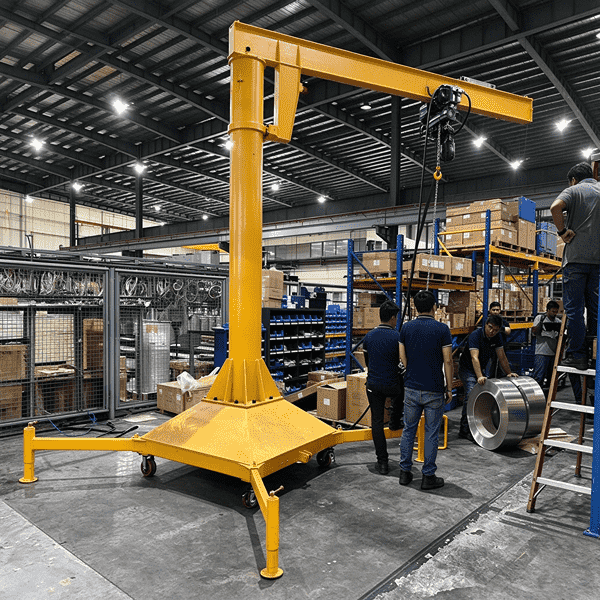

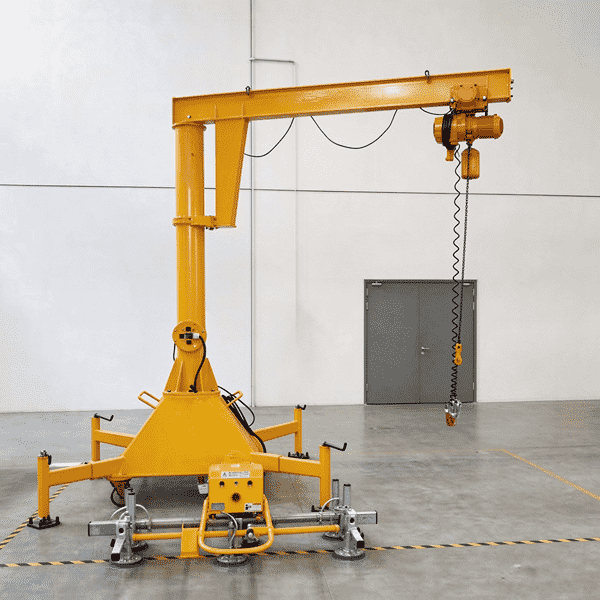

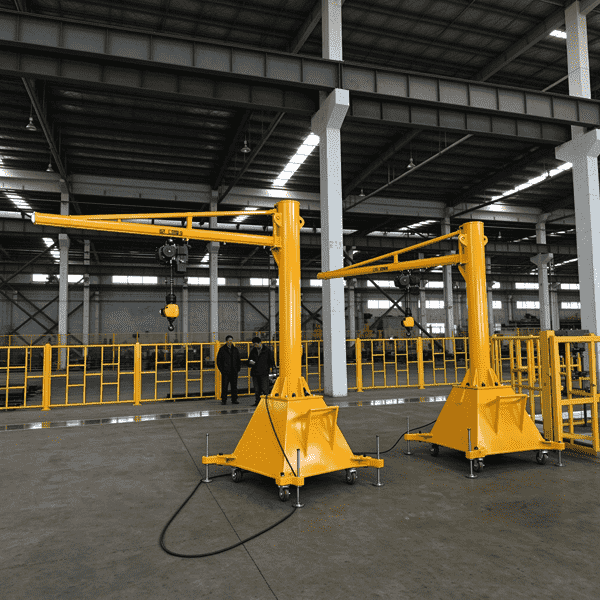

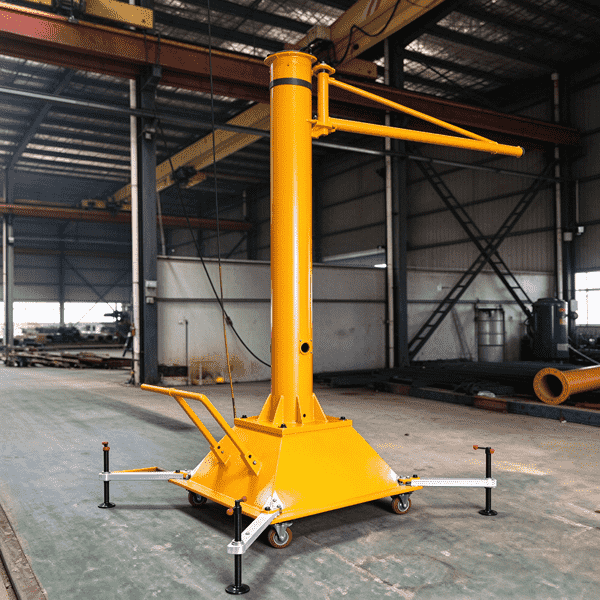

The mobile jib crane adopts a mobile base structure, equipped with high-strength universal casters (with brakes) or traction traveling wheels at the bottom, requiring no embedded foundation; it can be pushed to the work point on flat ground and perform lifting after brake fixation. The column adopts seamless steel pipe, and the jib arm adopts section steel welding, with compact structure and good rigidity; the jib arm can rotate 360° manually or electrically, matched with a chain electric hoist to achieve load lifting. The product is equipped with safety devices such as overload protection, upper/lower limit and rotation limit, with simple operation and flexible movement; it can replace fixed cranes to complete multi-point, small-batch lifting tasks, especially suitable for workshop equipment assembly, warehouse loading/unloading, machine tool loading/unloading and maintenance, serving as an ideal light-duty lifting device for flexible production in modern factories.
Application
Automotive industry
Medical industry
Machinery industry
Amusement facilities industry
Clothing industry / Apparel industry
Our Advantage
Mobile and flexible layout: With universal casters or traction wheels at the bottom, no fixed foundation required; one person can push it to any work point, and lifting can be performed after brake fixation, meeting multi-point and multi-station flexible lifting needs in the workshop, with usage range far exceeding fixed jib cranes.
360° rotation with wide coverage: The jib arm can rotate 360° continuously, matched with 2~6m radius, a single device can cover a circular working area; electric rotation models can control rotation direction and speed via buttons, manual rotation models are light and flexible, with wide working range and strong adaptability.
No installation, ready to use: The whole machine is assembled and debugged before delivery; after arriving at the site, no embedding, welding or complex installation is required, ready for use after power connection; it can be moved as a whole during relocation without damaging the floor, especially suitable for rental, temporary sites and workshops with frequent layout adjustments.
Compact structure with small footprint: Simple column + jib structure, base footprint only 1~2㎡, can flexibly pass through and operate in narrow passages and equipment gaps, without occupying fixed production space; can be pushed to a corner for storage when idle, with extremely high space utilization.
Easy operation with reliable safety: Equipped with chain electric hoist, pendant station centrally controls lifting, lowering and rotation, simple and easy to operate; standard overload protection, upper/lower limit, rotation limit and caster brakes provide multiple safety guarantees, ensuring safety during movement and lifting operations.
Technical Specifications
| Parameter | 0.25t | 0.5t | 1t | 2t | 3t | 5t |
| Rated Capacity | 0.25t | 0.5t | 1t | 2t | 3t | 5t |
| Jib Radius | 2~4m | 2~5m | 3~5m | 3~6m | 3~6m | 3~5m |
| Lifting Height | 3~5m | 3~6m | 3~6m | 3~6m | 3~5m | 3~5m |
| Lifting Speed (N/S) | 8/4 | 8/4 | 8/4 | 5/2.5 | 4/2 | 3.2/1.6 |
| Rotation Mode | manual | Manual/electric | Manual/electric | Manual/electric | electric | electric |
| Rotation Speed | manual | 0.5~1r/min | 0.5~1r/min | 0.5~1r/min | 0.5r/min | 0.5r/min |
| Hoist | chain electric hoist | chain electric hoist | Chain electric hoist | chain electric hoist | chain electric hoist | chain electric hoist |
| Hoisting Motor | 0.4kW | 0.6kW | 1.0kW | 1.5kW | 2.0kW | 3.0kW |
| Rotation Motor | — | 0.2kW（electric） | 0.2kW（electric） | 0.3kW（electric） | 0.4kW（electric） | 0.5kW（electric） |
| Traveling Mode | universal caster (with brake) | universal caster (with brake) | universal caster (with brake) | universal caster (with brake) | Traction Wheel + Caster Wheel | Traction Wheel + Caster Wheel |
| 底座尺寸 / Base Size | ~800×800mm | ~1000×1000mm | ~1200×1200mm | ~1400×1400mm | ~1600×1600mm | ~1800×1800mm |
| Weight | ~150kg | ~250kg | ~400kg | ~650kg | ~900kg | ~1300kg |
| Working Class | M3 | M3 | M3 | M3 | M3 | M3 |
