Introduction

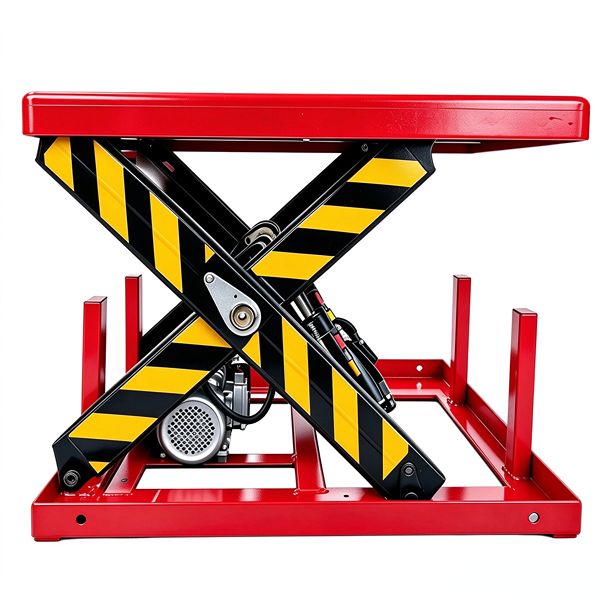

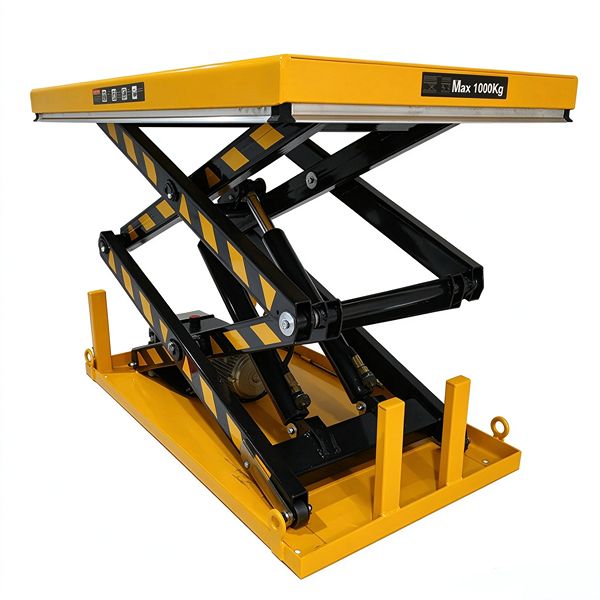

The fixed lifting platform consists of a lifting platform, scissor arm group, hydraulic cylinders, hydraulic pump station, chassis and electrical control system. The scissor arms are made of high-strength manganese steel rectangular tubes, hinged via pins to form a cross-folding structure; hydraulic cylinders drive the scissor arms to expand or retract, achieving stable vertical platform lifting. The product adopts pit installation; when the platform is lowered to the minimum, it is flush with the ground, facilitating direct entry of forklifts, trolleys and cargo; ground installation without pit can also be adopted according to needs. During lifting, the scissor arms provide cross support with stable structure and good rigidity, no sway under full load. Equipped with multiple hydraulic protections such as explosion-proof valve, relief valve, emergency lowering valve and hydraulic lock, as well as safety devices such as upper/lower limits, anti-pinch protection and platform guardrails. Platform size, lifting height and load capacity can all be customized, can carry pallets, forklifts, large equipment and other heavy objects; special table tops such as rollers, balls and flipping can also be customized according to production line needs. The fixed lifting platform is especially suitable for production line cargo lifting, warehouse inter-floor cargo transfer, automobile lifting, large equipment installation and maintenance, loading/unloading platforms, with large load capacity, good stability and easy maintenance, serving as the most widely used fixed lifting equipment in modern industrial and logistics fields.
Application
Automotive industry
Medical industry
Machinery industry
Amusement facilities industry
Clothing industry / Apparel industry
Our Advantage
Scissor structure with stable and strong load capacity: Adopting high-strength manganese steel scissor arm cross-support structure, uniform force and good rigidity during lifting, no sway or deformation of the platform under full load, can carry up to 50t heavy objects, stability and load capacity far higher than single-column and aluminum alloy lifting platforms.
Fixed installation with stable operation: Chassis fixed to the ground or pit, no displacement or sway during operation; hydraulic cylinders drive scissor arms to lift at constant speed, adjustable speed, stable start and brake, cargo not easy to tip or shift, especially suitable for stable lifting of precision equipment, fragile goods and large-tonnage cargo.
Pit installation flush with ground: Adopting pit installation, when the platform is lowered to the minimum, it is completely flush with the ground, forklifts and trolleys can directly enter, no ramps and steps needed, convenient and fast for loading/unloading; pit depth only 150~400mm, low civil construction cost, especially suitable for loading/unloading platforms and production line matching.
High customization with wide application: Platform size, lifting height and load capacity can all be customized as needed; table top can be optionally equipped with special functions such as rollers, balls, flipping and telescoping, can carry pallets, forklifts, automobiles, large equipment, meeting various fixed-position lifting needs such as production lines, warehouses, automobile maintenance, equipment installation.

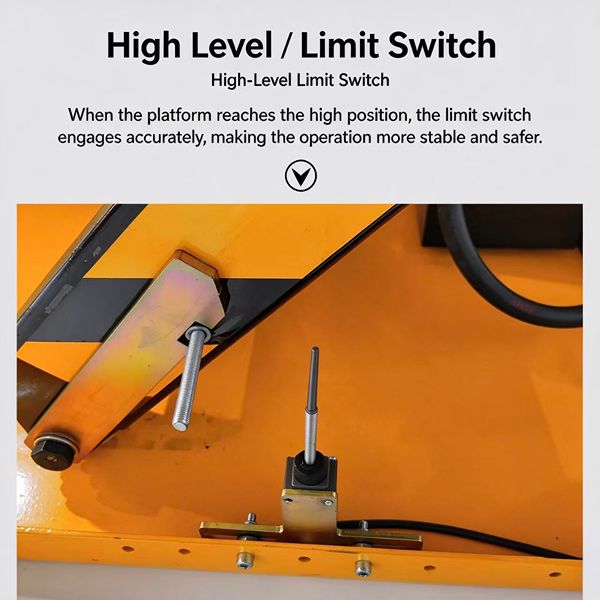

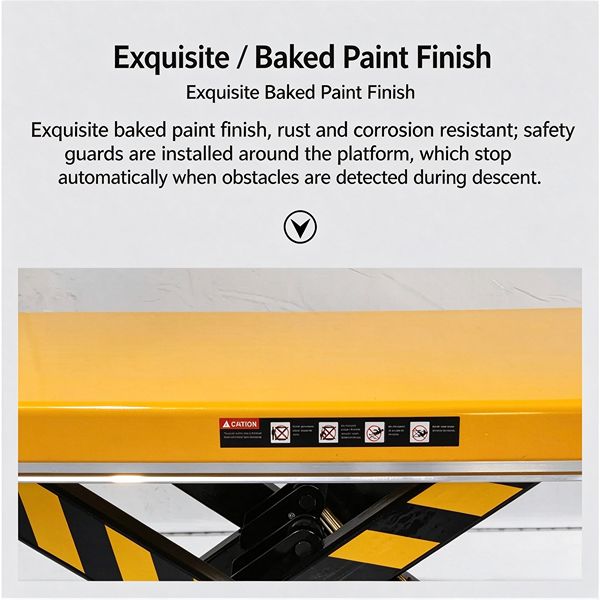

Multiple protection for safety and reliability: Equipped with explosion-proof valve, relief valve, hydraulic lock, emergency lowering valve, upper/lower limits, ultimate limit, anti-pinch protection, platform guardrail and overload protection and other multiple safety devices; automatically locks the platform when oil pipe bursts, manual emergency lowering available during power failure, comprehensively ensuring cargo and operator safety.
Technical Specifications
| Parameter | 0.5t | 1t | 2t | 3t | 5t | 10t | 20t | 50t |
| Rated Capacity | 0.5t | 1t | 2t | 3t | 5t | 10t | 20t | 50t |
| Lifting Height | 1~8m | 1~10m | 1~8m | 1~6m | 1~5m | 1~4m | 1~3m | 1~2m |
| Lifting Speed | 4~6 | 4~6 | 3~5 | 3~5 | 2~4 | 2~4 | 2~3 | 2~3 |
| Platform Size | 2×1.5m | 2.5×2m | 3×2m | 3×2.5m | 4×3m | 5×3m | 6×4m | 8×5m |
| Motor Power | 2.2kW | 3kW | 4kW | 5.5kW | 7.5kW | 11kW | 15kW | 22kW |
| Number of Cylinders | 1 | 1 | 2 | 2 | 2 | 4 | 4 | 6 |
| Scissor Layers | 1~3 floors | 1~4 floors | 1~3 floors | 1~2 floors | 1~2 floors | 1 floors | 1 floors | 1 floors |
| Minimum Height | ~150mm | ~200mm | ~250mm | ~300mm | ~350mm | ~400mm | ~500mm | ~600mm |
| Pit Depth | ~200mm | ~250mm | ~300mm | ~350mm | ~400mm | ~450mm | ~550mm | ~650mm |
| Control Mode | button control | button control | button control | button control | button control | button control | button control | button control |
| Guardrail | detachable | detachable | detachable | detachable | detachable | detachable | detachable | detachable |
| Weight | ~400kg | ~700kg | ~1200kg | ~1900kg | ~3200kg | ~5500kg | ~9000kg | ~18000kg |
| Working Class | M3 | M3 | M3 | M3 | M3 | M3 | M3 | M3 |
