Introduction

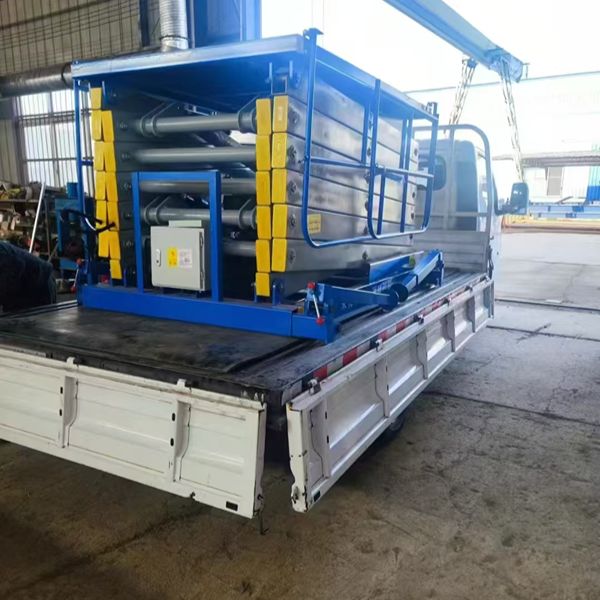

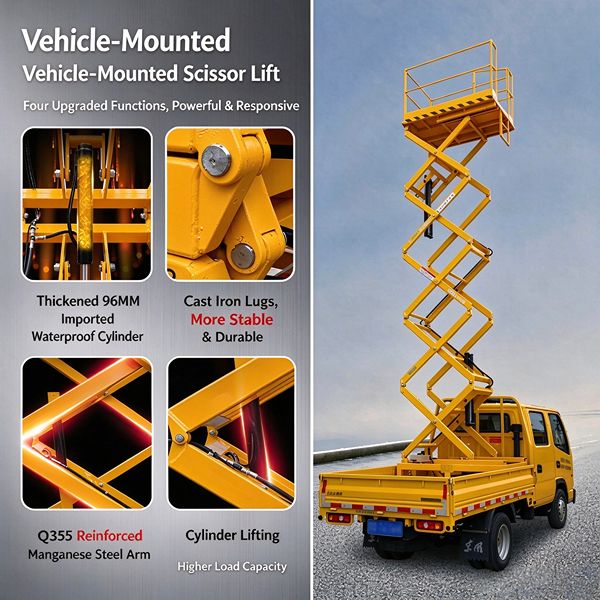

The vehicle-mounted lifting platform consists of a lifting platform, scissor arm group, hydraulic cylinders, hydraulic pump station, rotating base and vehicle chassis. The scissor arms are made of high-strength manganese steel rectangular tubes, hinged via pins to form a cross-folding structure; hydraulic cylinders drive the scissor arms to expand or retract, achieving stable vertical platform lifting. The whole is installed on the vehicle chassis, can travel with the vehicle to any work point, no additional transportation and lifting required; some models are equipped with a rotating base, the platform can rotate 360°, expanding the operation coverage; safety guardrails and anti-slip table top are set around the platform, ensuring safety of high-altitude operators. The product adopts vehicle battery or independent gasoline engine/motor to drive the hydraulic pump station, no external power required for outdoor operation; equipped with outriggers, extending outriggers during lifting to enhance stability and ensure the whole vehicle does not overturn. Operation method can choose ground control box or on-platform control box, lifting, rotation and outriggers can all be operated with one button. The vehicle-mounted lifting platform is especially suitable for outdoor high-altitude operation occasions requiring frequent transfer such as street lamp maintenance, power line inspection, traffic signal light maintenance, garden tree pruning, outdoor advertising billboard installation, municipal cleaning, building exterior wall maintenance, with strong mobility and high operation efficiency, serving as an ideal mobile high-altitude operation device to replace scaffolding and fixed aerial work platforms.
Application
Automotive industry
Medical industry
Machinery industry
Amusement facilities industry
Clothing industry / Apparel industry
Our Advantage
Vehicle-mounted with fast transfer: The whole is installed on the vehicle chassis, can travel at high speed with the vehicle to any work point, transfer speed far faster than traction and self-propelled lifting platforms; after arrival, extend outriggers to operate, short preparation time, especially suitable for multi-point, scattered outdoor high-altitude operations.
Wide high-altitude operation range: Lifting height up to 6~20m, 配合 platform rotation (360° rotation for some models) and vehicle movement, a single device can cover a large range of high-altitude operation area, operation radius far larger than fixed lifting platforms, can meet operation needs of different heights and positions such as street lamps, power, gardens.

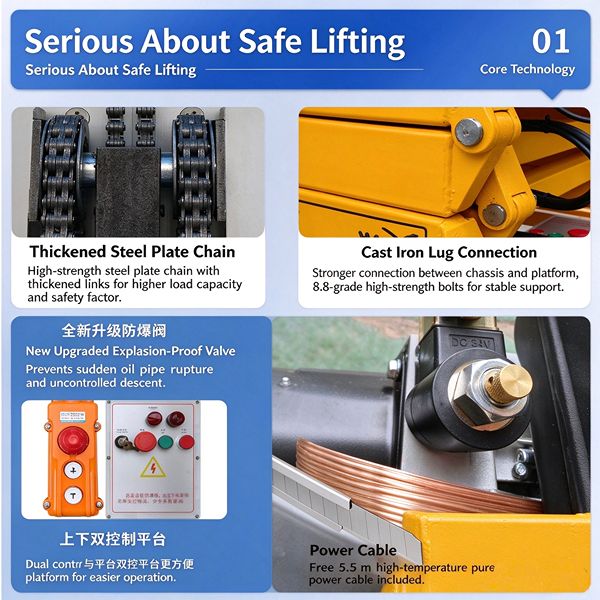

Hydraulic drive for stable and safe operation: Hydraulic cylinders drive scissor arms to lift at constant speed, adjustable speed, stable start and brake, no impact sway; hydraulic system is equipped with explosion-proof valve, relief valve and hydraulic lock, automatically locking the platform when oil pipe bursts, eliminating falling; extend outriggers during lifting, good overall vehicle stability, ensuring safety of high-altitude operators.
Outdoor independent power without external power: Adopting vehicle battery or independent gasoline/diesel engine to drive the hydraulic pump station, no external power required for outdoor operation, can operate normally in environments without power facilities such as fields, roads, parks, flexible power source, adapting to various complex outdoor operation environments.
Easy operation with high efficiency: Adopting ground or on-platform control box button operation, lifting, rotation and outriggers can all be controlled with one button, simple operation without professional training; after arriving at the work point, extend outriggers to lift, short preparation time, single operation cycle over 80% faster than scaffolding, greatly improving outdoor high-altitude operation efficiency and reducing labor costs.
Technical Specifications
| Parameter | 0.2t | 0.3t | 0.5t | 1t |
| Rated Capacity | 0.2t | 0.3t | 0.5t | 1t |
| Lifting Height | 6~12m | 6~14m | 6~16m | 6~10m |
| Lifting Speed | 4~6 m/min | 4~6 | 3~5 | 3~4 |
| Platform Size | 1.5×0.8m | 1.8×1m | 2×1.2m | 2.5×1.5m |
| Motor Power | 2.2kW | 3kW | 4kW | 5.5kW |
| Power Source | On-board battery / Gasoline engine | On-board battery / Gasoline engine | On-board battery / Gasoline engine | On-board battery / Gasoline engine |
| Rotation | None / 360° (Optional) | None / 360° (Optional) | 360° | 360° |
| Scissor Layers | 2~3 floors | 2~4 floors | 2~5 floors | 2~3 floors |
| Outriggers | Hydraulic outriggers (Standard) | Hydraulic outriggers (Standard) | Hydraulic outriggers (Standard) | Hydraulic outriggers (Standard) |
| Guardrail | detachable | detachable | detachable | detachable |
| Applicable Chassis | Pickup / Light truck | Light truck | Light truck / Medium truck | Medium truck |
| Weight (excl. chassis) | ~600kg | ~900kg | ~1400kg | ~2200kg |
| Working Class | M3 | M3 | M3 | M3 |
