Introduction

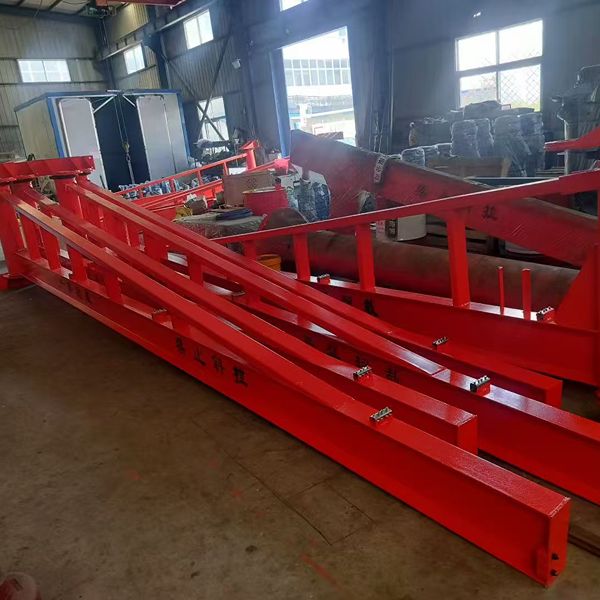

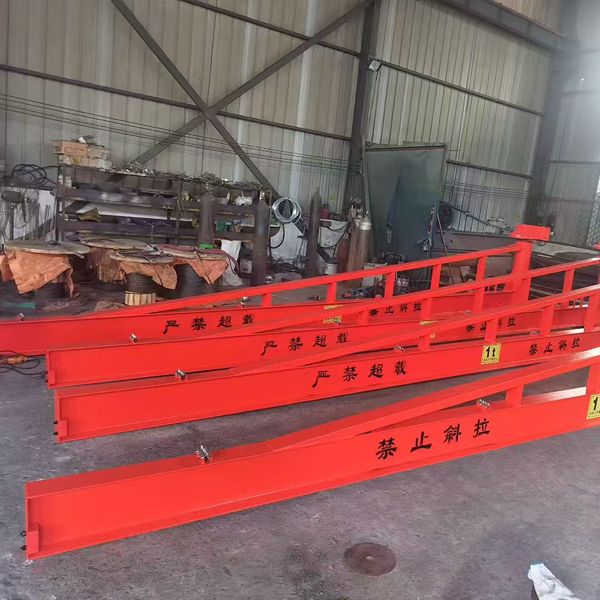

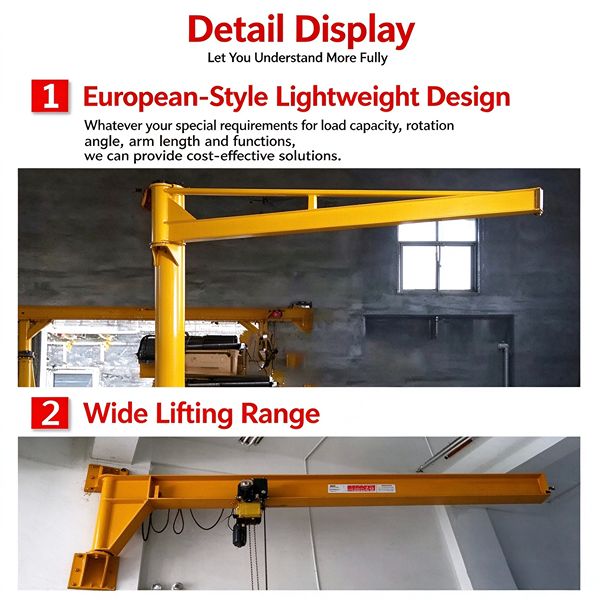

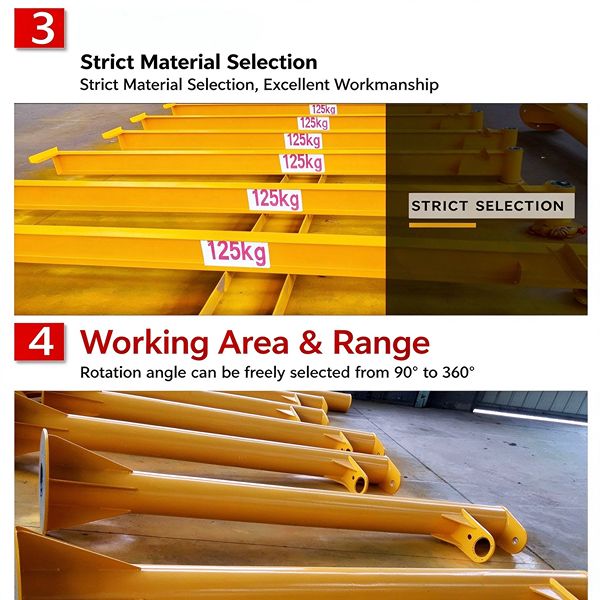

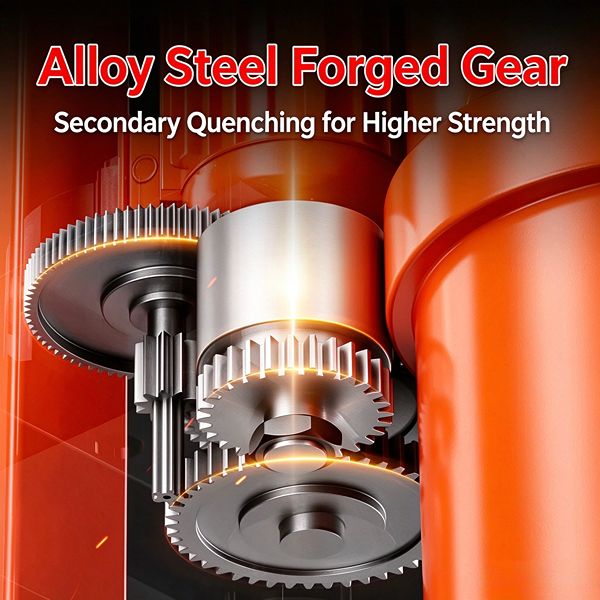

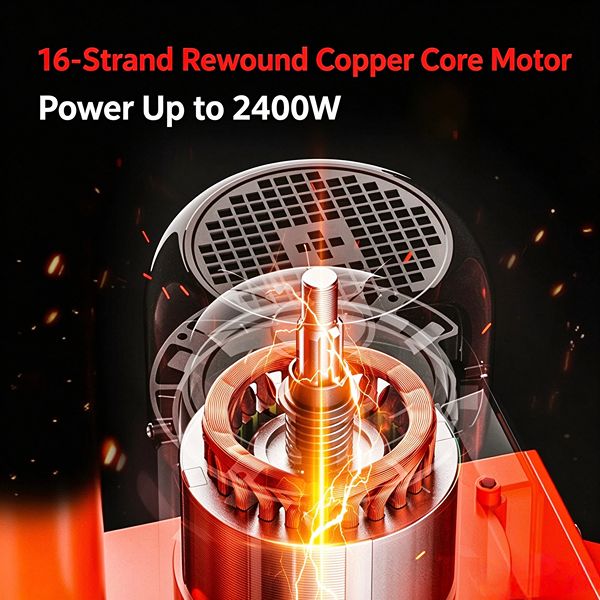

Wall-mounted jib cranes consist of wall brackets, slewing device, jib, and chain/wire rope electric hoist. The brackets are fixed to concrete walls or steel columns with high-strength bolts; the jib uses I-beam or H-beam steel with light weight and large span. The slewing mechanism supports manual push or electric drive, controlled via pendant or wireless remote for hoisting, lowering, slewing, and trolley travel. Especially suitable for wall-side production lines, narrow areas beside machine tools, and old factory renovations where floor columns cannot be installed, offering an economical workstation-level lifting solution.
Application
Automotive industry
Medical industry
Machinery industry
Amusement facilities industry
Clothing industry / Apparel industry
Our Advantage
The device relies entirely on wall or column mounting with no floor foundation or independent column needed, freeing 100% of floor space for production and logistics aisles, especially suitable for compact workshops and old factory renovations.
Directly fixed to load-bearing walls or steel columns with high-strength bolts, requiring no concrete foundation. Short installation cycle with manufacturing and installation costs far lower than floor-mounted and bridge cranes, offering excellent value.
Supports dual pendant and wireless remote control modes with 180° fan-shaped jib coverage and trolley lateral travel, enabling precise positioning with repeatability of ±2mm, meeting precision assembly and machine tool loading/unloading requirements.
Installable on concrete walls, steel columns, or equipment bodies, with customization in carbon steel, 304/316 stainless steel, suitable for general workshops, food/pharmaceutical clean rooms, chemical anti-corrosion, and various working environments.
Simple structure with few components; wall brackets have clear load paths, and the steel jib is economical and durable. Routine maintenance only requires bearing lubrication and wire rope inspection, resulting in low maintenance frequency, low costs, and long service life.
Technical Specifications
| Model | BXS0.25 | BXS0.5 | BXD1 | BXD2 | BXD3 | BXD5 |
| Capacity | 0.25 | 0.5 | 1 | 2 | 3 | 5 |
| Jib Length | 2～4 | 2～5 | 3～6 | 3～6 | 3～8 | 3～8 |
| Lifting Height | 3～6 | 3～6 | 3～8 | 3～8 | 3～10 | 3～10 |
| Lifting Speed | 8 | 8 | 8/0.8 | 4/1 | 8/0.8 | 8/0.8 |
| Travel Speed | 20 | 20 | 20 | 20 | 20 | 20 |
| Rotation Angle | 180° | 180° | 180° | 180° | 180°/270° | 180°/270° |
| Rotation Type | Manual / Electric | Manual / Electric | Electric | Electric | Electric | Electric |
| Slewing Speed | — | — | 0.76 | 0.76 | 0.51 | 0.51 |
| Jib Section | I-beam | I-beam | H-beam | H-beam | H-beam | H-beam |
