Introduction

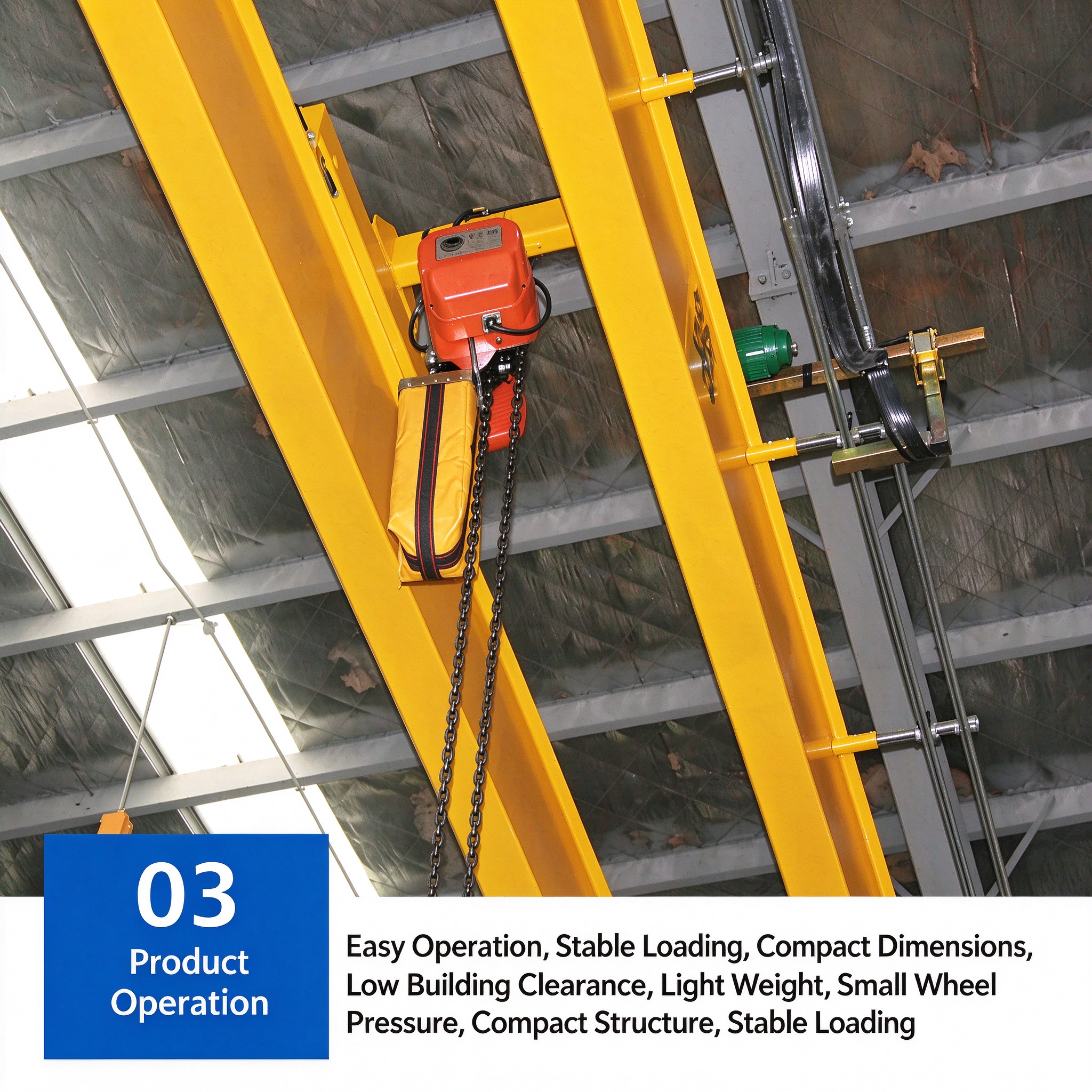

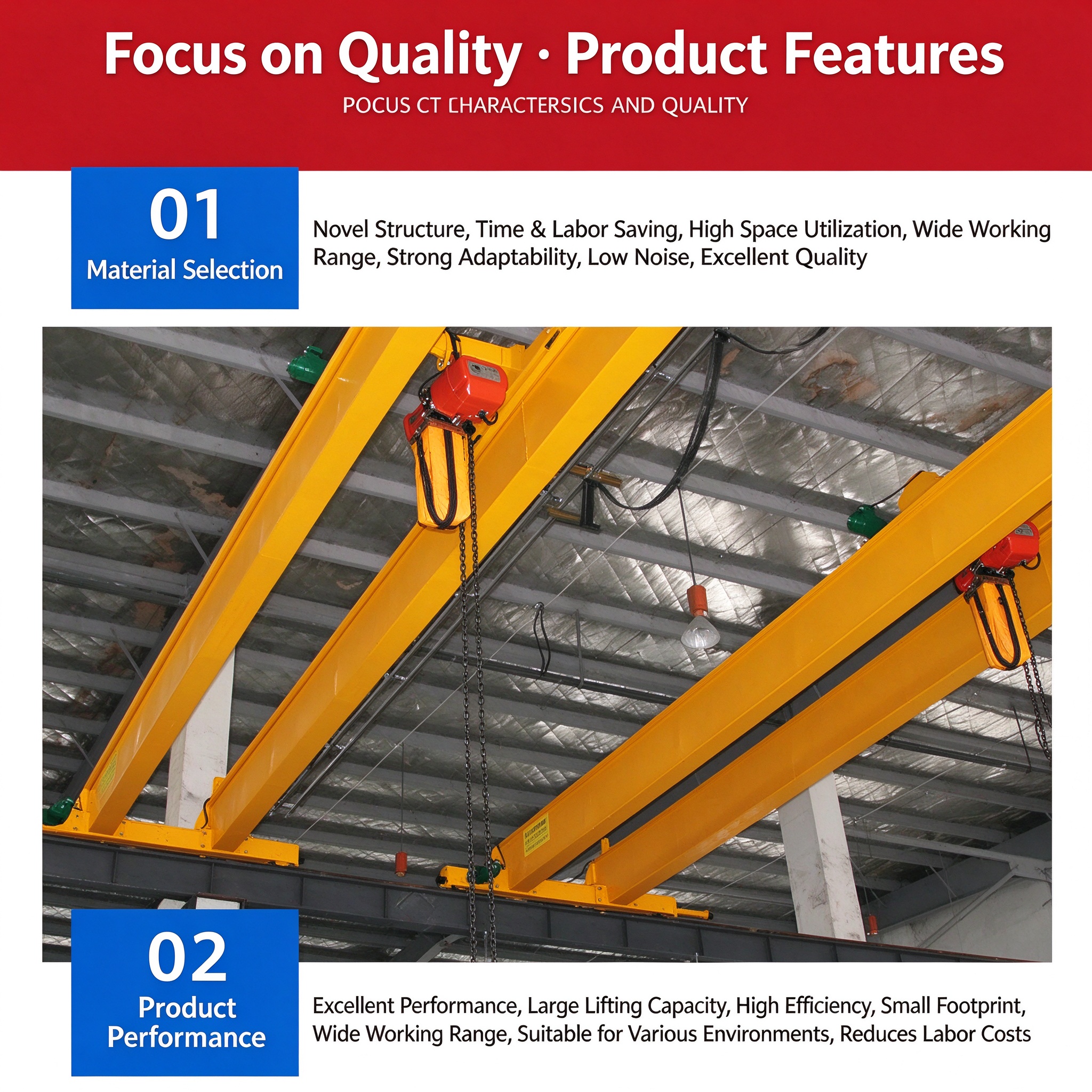

The LH type electric hoist bridge crane uses a fixed wire rope hoist (or chain hoist) as its lifting mechanism, installed on a centrally driven double-rail trolley with a double-girder bridge, forming a compact “hoist double-girder” structure. Compact size, low headroom, light weight, and low wheel load significantly reduce plant construction cost. Available as LH (single hoist) and LHE (double hoist), with the hoist parallel to the girder for single hook and perpendicular for double hook. Both cab and floor control are offered, with open/closed cabs and multiple mounting directions, widely used in machining, warehousing, stockyards, power station maintenance, and assembly under light-medium duty.
Application
Automotive industry
Medical industry
Machinery industry
Amusement facilities industry
Clothing industry / Apparel industry
Our Advantage
Compact low-headroom design cuts building height and cost for high investment return.
Light dead weight and low wheel load ease demands on rails and foundations for wide adaptability.
Hoist-based lifting runs smoothly with reliable braking and easy maintenance or replacement.
Single/double hoist options with cab or floor control and multiple cab mounting directions.
Suits machining, warehousing, stockyards, and plant maintenance; replaces standard double-girder cranes in textile and food plants.
Specification
| Capacity (t) | Span (m) | Lifting Height (m) | Lifting Speed (m/min) | Trolley (m/min) | Crane (m/min) |
| 5 | 10.5 – 22.5 | 6 – 30 | 8 / 0.8 | 20 | 20 |
| 8 | 10.5 – 22.5 | 6 – 30 | 8 / 0.8 | 20 | 20 |
| 12.5 | 10.5 – 25.5 | 6 – 30 | 8 / 0.8 | 20 | 20 |
| 16/3.2 | 10.5 – 25.5 | 6 – 30 | 7 / 0.7 | 20 | 20 |
| 20/5 | 10.5 – 28.5 | 6 – 30 | 7 / 0.7 | 20 | 20 |
| 32/8 | 10.5 – 31.5 | 6 – 30 | 3.5 / 0.35 | 20 | 20 |
| 50 | 10.5 – 31.5 | 6 – 30 | 3.5 / 0.35 | 20 | 20 |
