Introduction

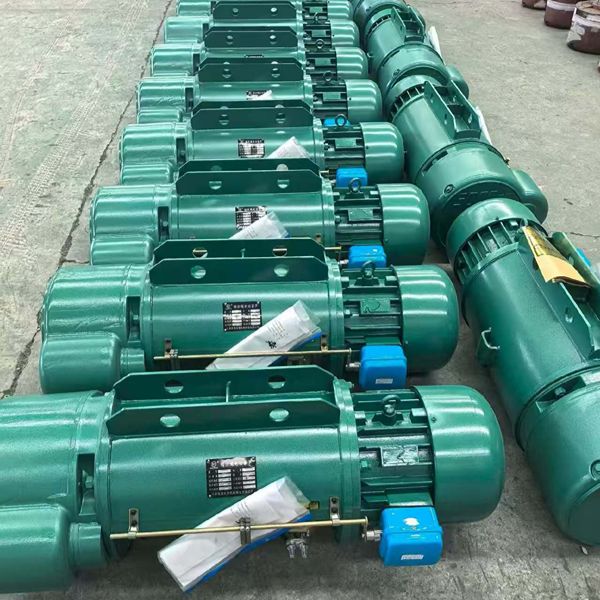

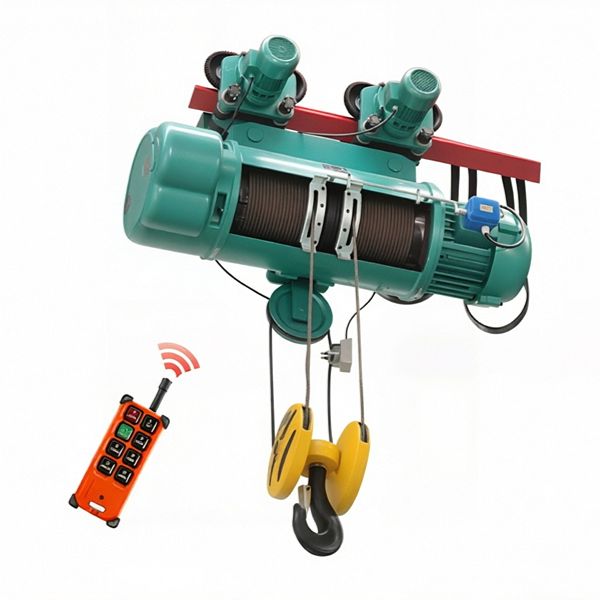

CD‑type electric wire rope hoist is a light‑duty single‑speed lifting equipment. It features compact structure, light weight, simple operation and easy maintenance. It can be matched with single‑beam, overhead, gantry and jib cranes, widely used in factories, warehouses, docks for general material lifting and handling.
Application
Automotive industry
Medical industry
Machinery industry
Amusement facilities industry
Clothing industry / Apparel industry
Feature
CD type wire rope electric hoist is a single-speed lifting equipment with compact structure and stable operation. It can be matched with overhead cranes, gantry cranes and jib cranes. Widely applied in workshops, outdoor yards, auto repair shops and docks for lifting molds, mechanical assemblies, steel materials and small goods. Equipped with braking motor, travel limit switches and hook anti-drop device for reliable safety. Easy to install and maintain, dustproof and sturdy. Rainproof and anti-corrosion accessories are available for outdoor application to meet most light and small lifting tasks.
Our Advantage
Compact structure with strong installation adaptability.
Reliable braking performance and complete safety protection.
Direct sales from manufacturer with outstanding cost performance.
Durable overall structure and easy maintenance for longer service life.
Wide working condition adaptability with upgradable outdoor protection kits.
Specification
| Rated Lifting Capacity | Standard Lifting Height | Lifting Speed (m/min) | Travelling Speed (m/min) | Wire Rope Diameter (mm) | I-beam Track Model | Main Lifting Motor Power |
| 1T | 6m, 9m, 12m, 18m, 24m, 30m | 8 | 20 | 7.7 | I16、I18、I20a | 1.5 kW |
| 2T | 6m, 9m, 12m, 18m, 24m, 30m | 8 | 20 | 11 | I20a、I22a、I25a | 3.0 kW |
| 3T | 6m, 9m, 12m, 18m, 24m, 30m | 8 | 20 | 13 | I25a、I25b、I28a | 4.5 kW |
| 5T | 6m, 9m, 12m, 18m, 24m, 30m | 8 | 20 | 15 | I25a、I30a、I32a | 7.5 kW |
| 10T | 9m, 12m, 18m, 24m, 30m | 7 | 20 | 17.5 | I25a、I30a、I32a | 13 kW |
| 20T | 9m, 12m, 18m, 24m, 30m | 3.5 | 20 | 21.5 | I25a、I30a、I32a | 18.5kW |
| 25T | 9m, 12m, 18m, 24m, 30m | 3.5 | 20 | 21.5 | I50a、I56a | 18.5kW |
| 50T | 9m, 12m, 18m, 24m, 30m | 3.5 | 20 | 30 | I63b 、I63c | 24kW |
