Introduction

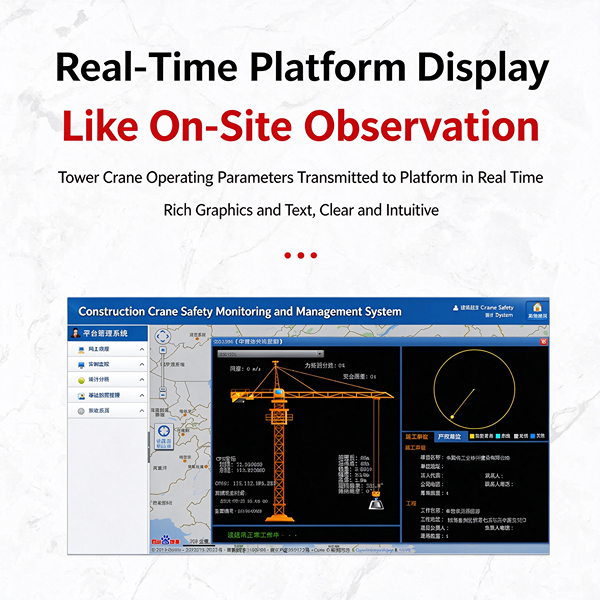

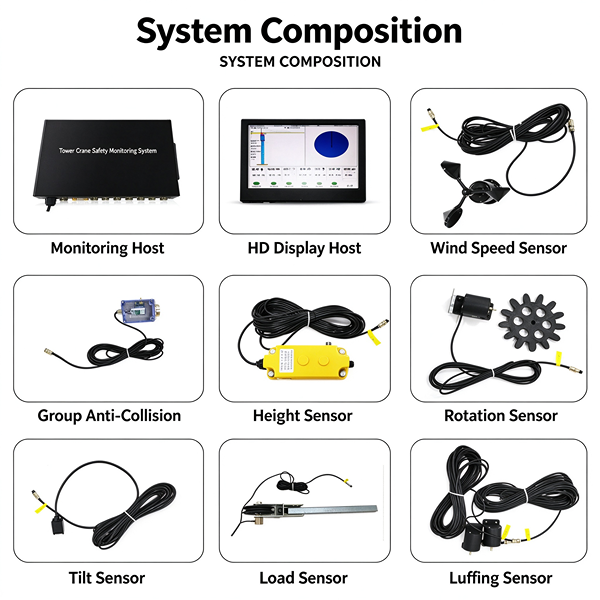

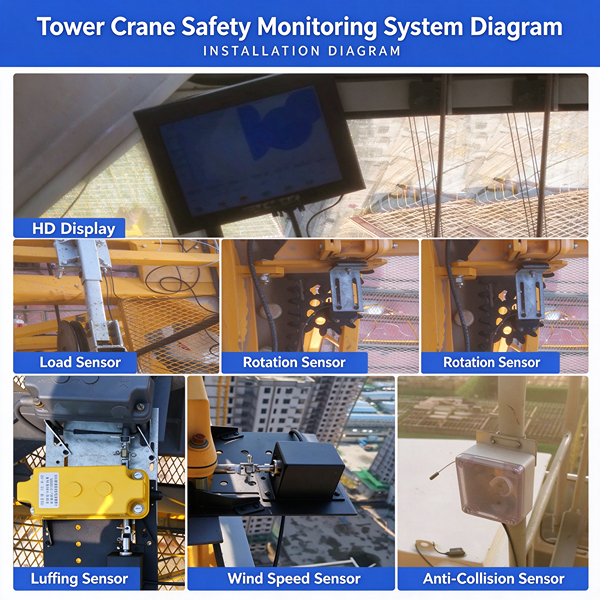

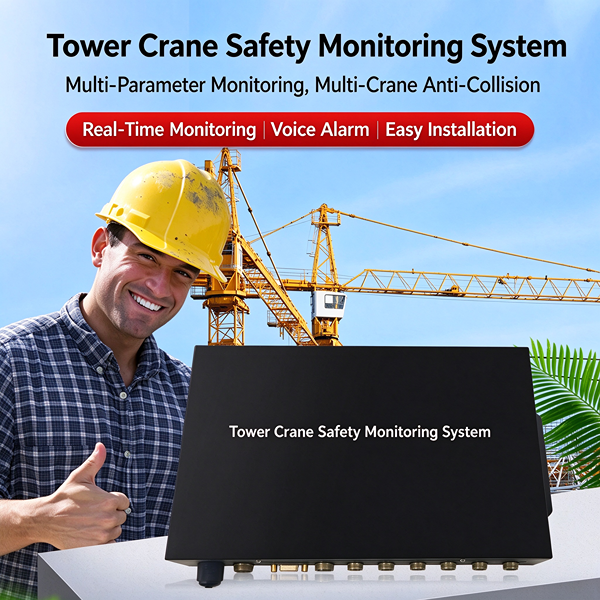

The system consists of a monitoring host (with display), load/moment, height, radius, slew, wind speed, and inclination sensors, plus an audible-visual alarm. It displays crane operating parameters in real time and automatically alarms and cuts off the control circuit on over-limit. The built-in “black box” records continuous operating data at intervals of no more than 1 second, covering over 6 months for accident tracing and inspection. With RS485, Ethernet, or 4G interfaces, it can be upgraded to a remote monitoring platform (RCMS) for networked multi-crane supervision.
Our Advantage

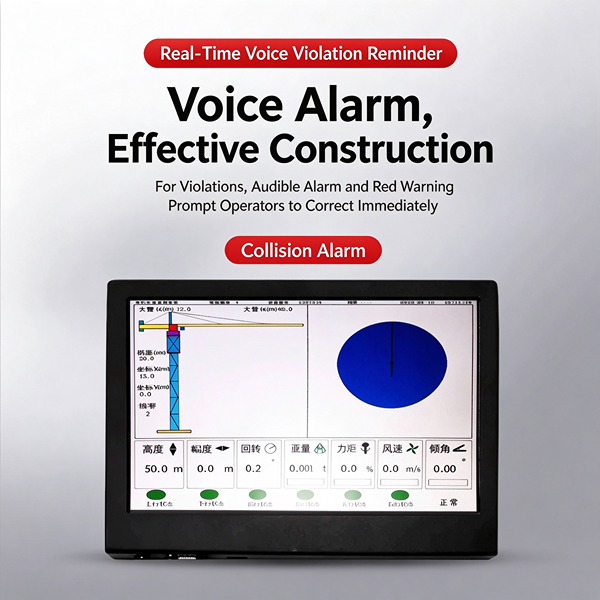

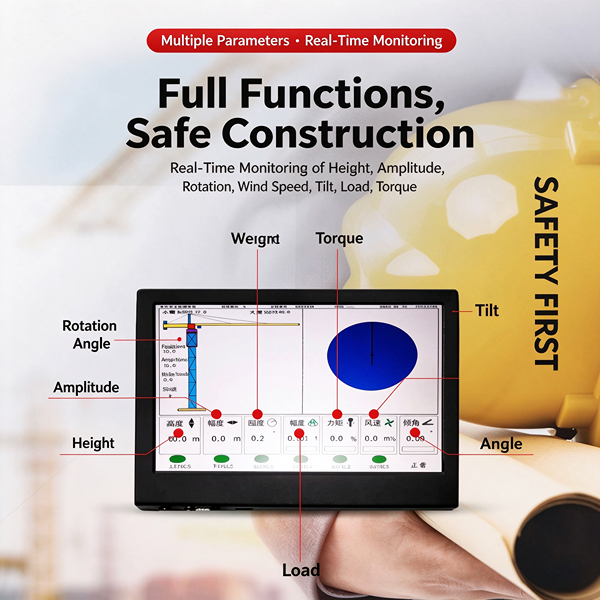

Monitors load, moment, height, radius, slew, wind speed, etc., with instant over-limit warning across key safety links.
Automatically cuts control power on danger to force shutdown, preventing overloading and over-travel accidents.
Records and stores 6+ months of data at ≤1s intervals for reliable post-accident tracing, meeting inspection require

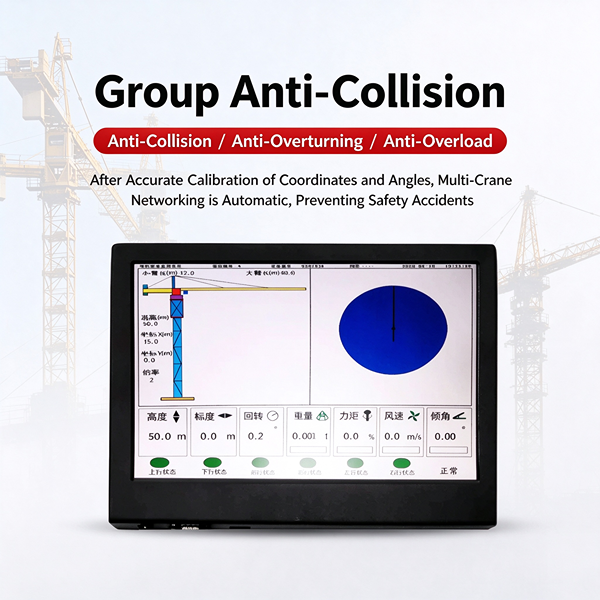

Supports RS485, Ethernet, and 4G for remote platform access, enabling multi-crane networking and centralized supervision.
Compliant with GB/T 28264-2017, a mandatory device for large cranes, helping you pass supervision inspection.
Specification
| Item | Specification |
| Display | Load, moment, height, radius, slew, travel, wind |
| Alarm | Overload, over-moment, over-height, over-radius, over-speed |
| Cut-off | Auto cut control circuit on danger |
| Record | ≤1s, 6+ months storage |
| Interface | RS485 / 4G |
| Power | AC 220V / 380V |
