Introduction
The European-style crane hook adopts advanced European lifting design concepts, using large-diameter pulley blocks to reduce wire rope bending stress, extending wire rope life by over 30% compared with conventional hooks. The hook frame adopts precision cast steel or welded box-type structure with compact design and high rigidity, effectively reducing overall headroom. The hook body is forged from high-strength alloy steel, heat-treated and magnetic particle inspected, with safety factor over 5 times. Pulleys are fitted with double-row sealed rolling bearings for flexible, wear-resistant and maintenance-free rotation. Functional modules such as manual rotation, electric rotation, insulation and high-temperature resistance can be configured on demand; modular design facilitates maintenance and replacement, serving as an ideal load attachment for modern intelligent overhead cranes.

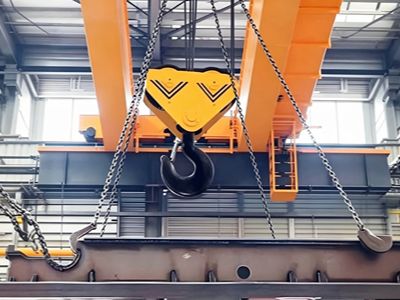

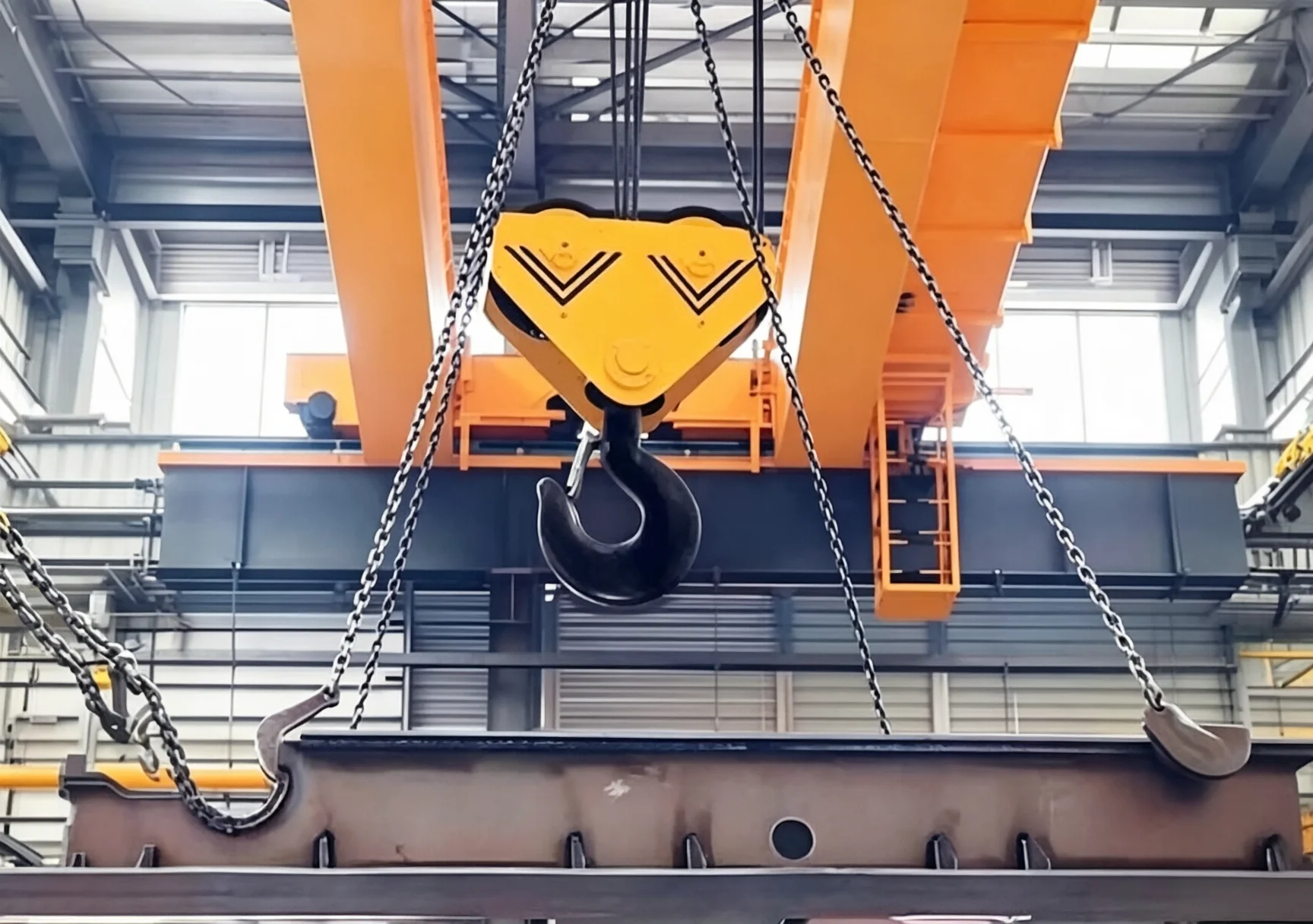

Application
Our Advantage

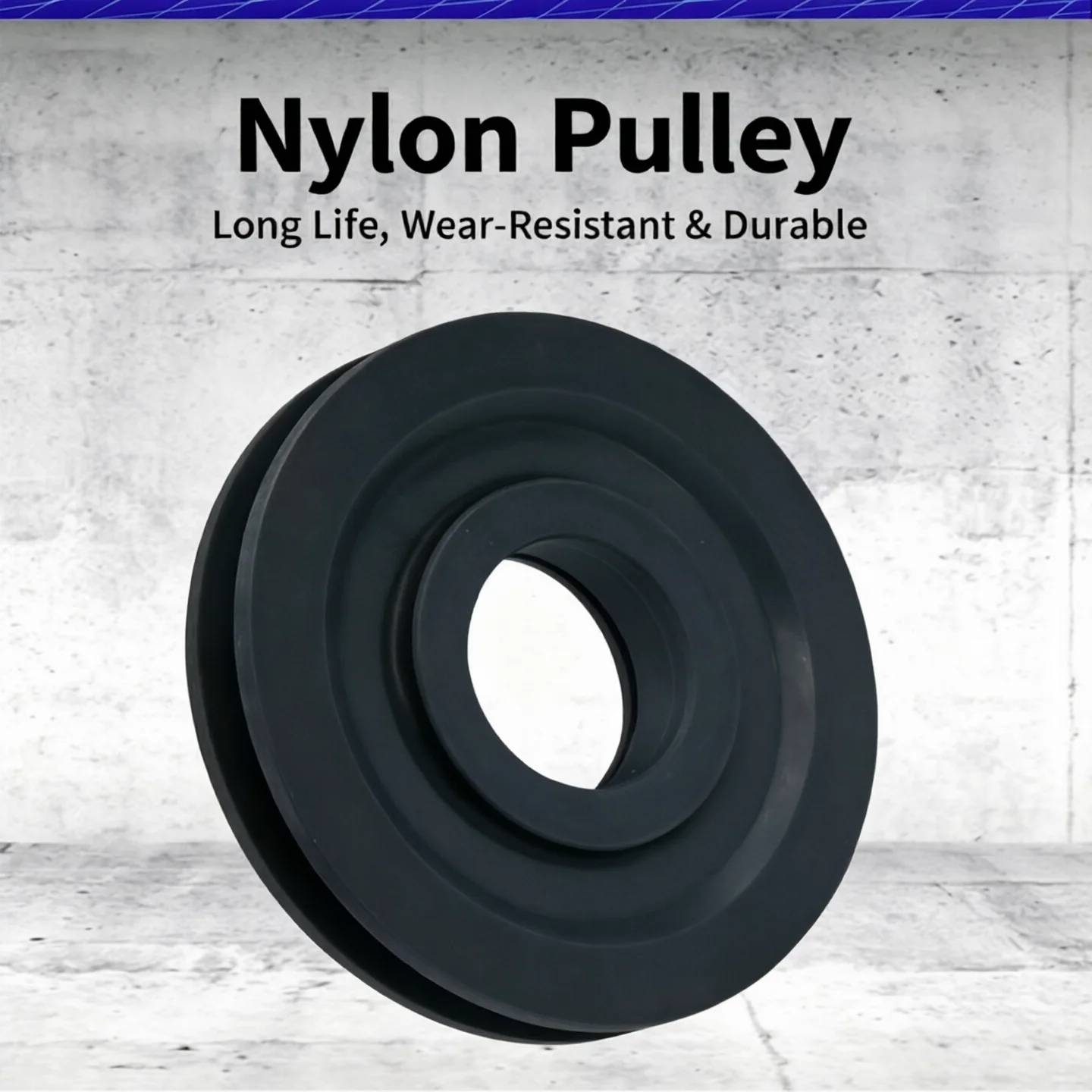

Pulley diameter is over 20% larger than GB-standard type, greatly reducing wire rope bending stress and wear, extending wire rope service life by over 30% and significantly lowering replacement costs and downtime.

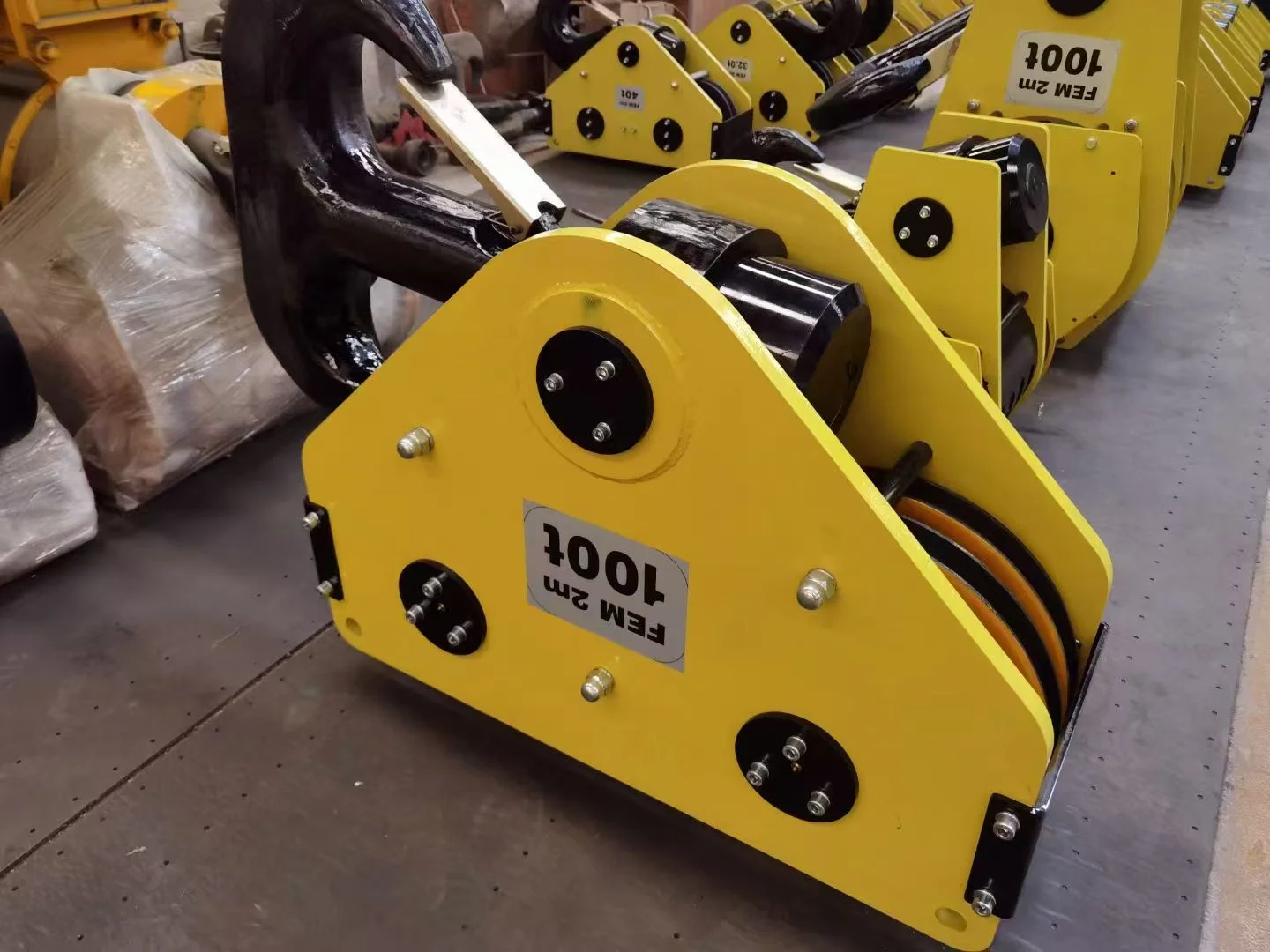

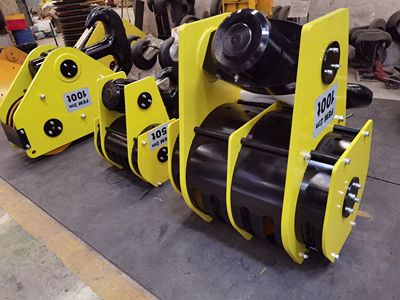

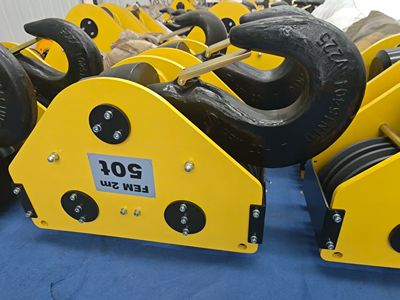

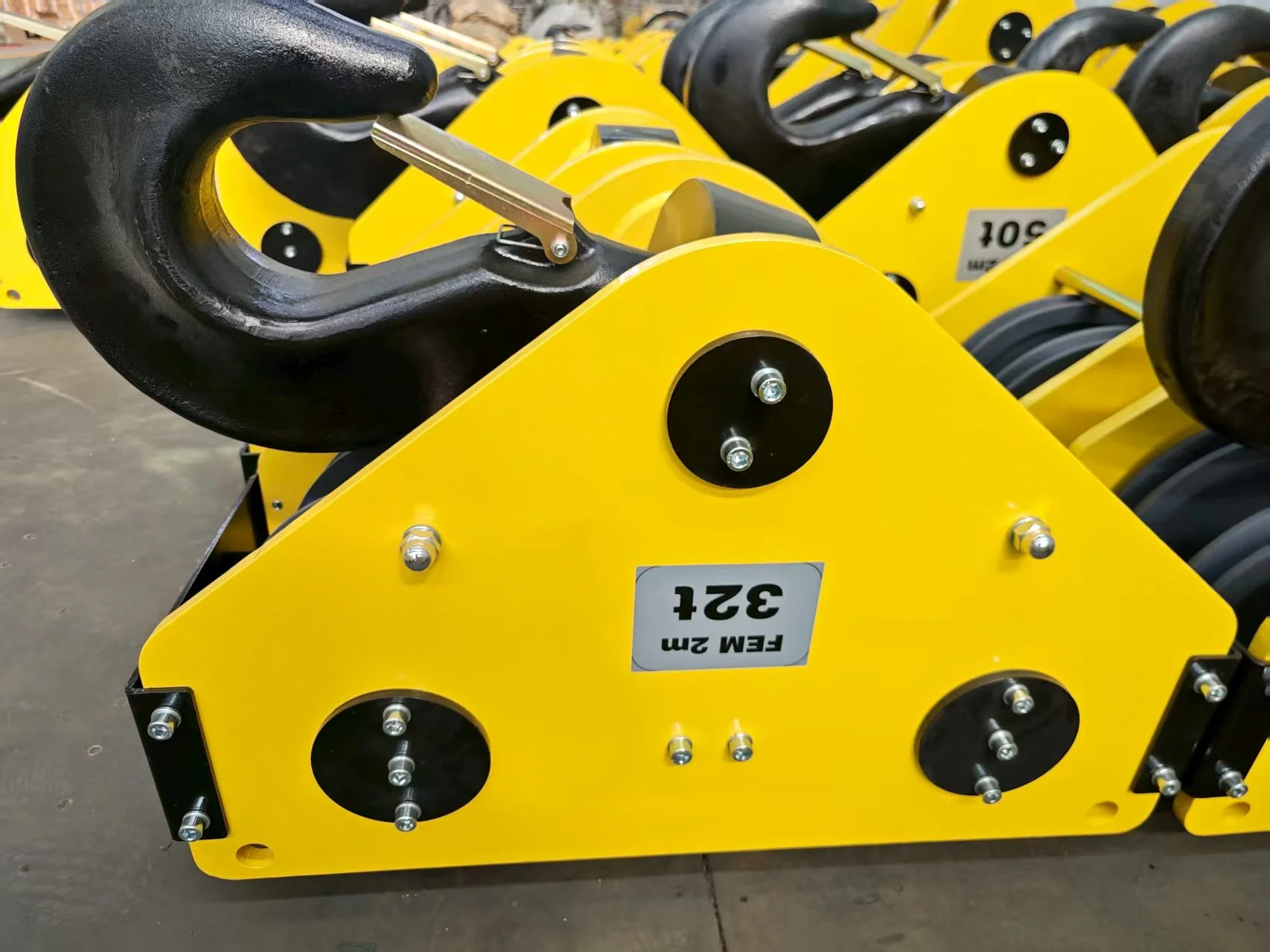

Hook frame adopts European box-type compact design, with overall height 15%~25% lower than conventional hooks, providing greater effective lifting height under the same workshop conditions, fully utilizing space and reducing construction costs.
Hook body is integrally forged from high-strength alloy steel, normalized and tempered, with high tensile strength and good toughness, safety factor ≥5 times, with 100% magnetic particle inspection ensuring no internal defects for safe heavy-duty operation.

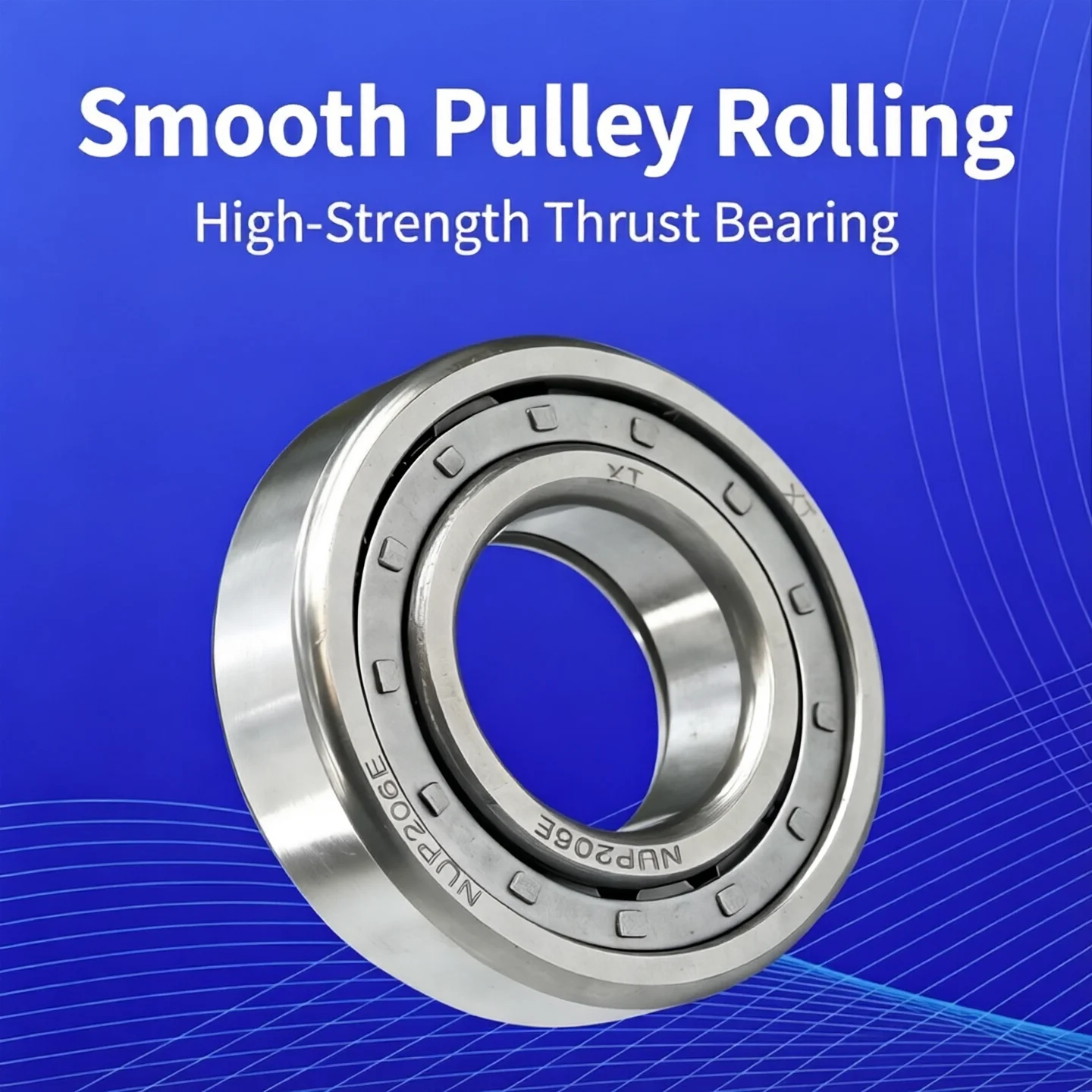

Pulleys adopt double-row sealed rolling bearings with low rotational resistance, self-lubrication and maintenance-free design, maintaining flexible rotation after long-term use, effectively reducing hoisting motor power loss and improving operating efficiency.
Functional modules such as electric rotation, insulation, high-temperature resistance and weighing display can be configured according to working conditions; each module is independently designed for easy assembly and disassembly, meeting both standard lifting needs and special working condition customization.
Specification
| Parameter | 5t | 10t | 16t | 20t | 32t | 50t | 80t | 100t | 160t | 200t | 320t | 500t |
| Rated Capacity | 5t | 10t | 16t | 20t | 32t | 50t | 80t | 100t | 160t | 200t | 320t | 500t |
| Pulley Dia | 280 | 315 | 355 | 400 | 450 | 500 | 560 | 630 | 710 | 800 | 900 | 1000 |
| Number of Pulleys | 1 | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 6 | 8 |
| Wire Rope | 17.5 | 15.5×2 | 17.5×2 | 20×2 | 22×2 | 26×2 | 28×4 | 30×4 | 34×4 | 38×4 | 40×6 | 44×8 |
| Hook Opening | 32mm | 38mm | 45mm | 50mm | 60mm | 70mm | 80mm | 90mm | 110mm | 120mm | 150mm | 180mm |
| Hook Material | 20 steel | DG20Mn | DG20Mn | DG20Mn | DG20Mn | DG20Mn | DG20Mn | DG20Mn | DG20Mn | DG20Mn | DG20Mn | DG20Mn |
| Safety Factor | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 |
| Bearing Type | double row sealed ball bearing | Same as left | Same as left | Same as left | Same as left | Same as left | Same as left | Same as left | Same as left | Same as left | Same as left | Same as left |

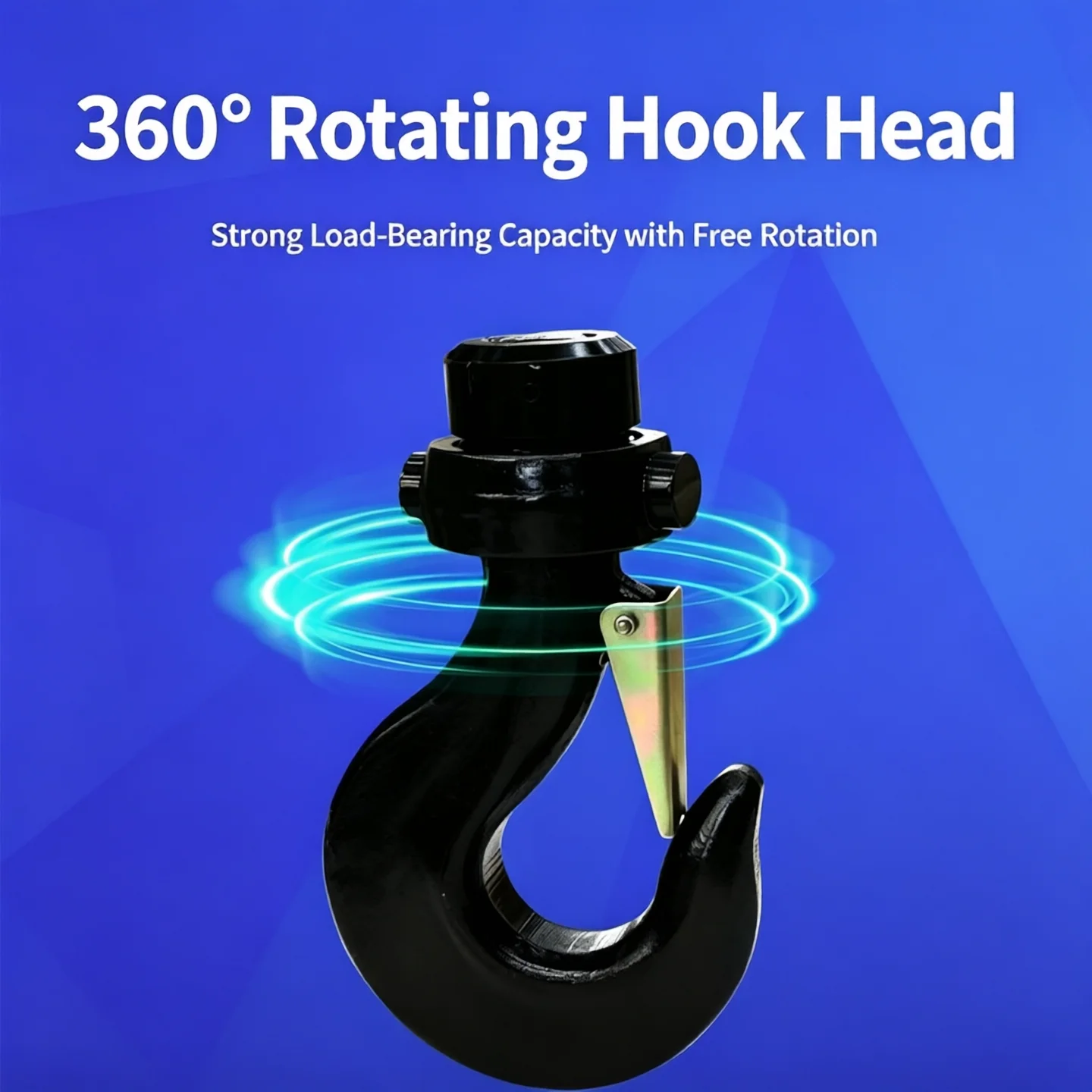

| Rotation | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree |
| Safety Latch | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
