Introduction

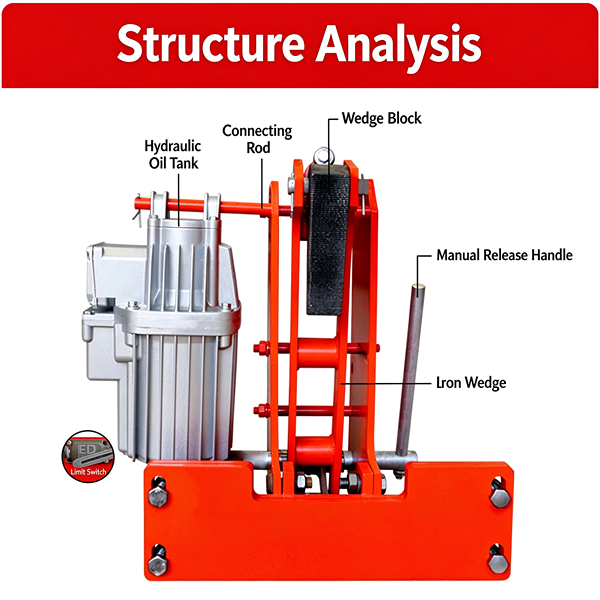

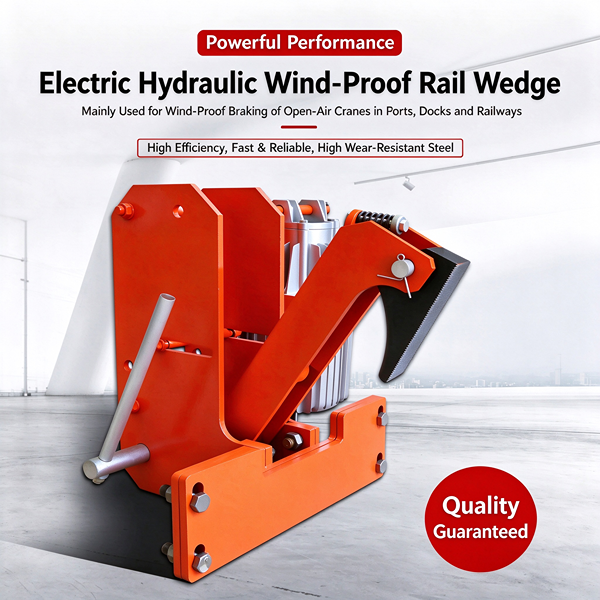

The YFX windproof wedge brake mainly consists of a brake frame (iron wedge) and a matching Ed electro-hydraulic thruster that raises and lowers the wedge through links. During operation the thruster lifts the wedge for free wheel passage; on shutdown or power loss the thruster releases and the wedge drops by gravity to wedge between the wheel and rail tread, firmly anchoring the crane against wind. Single-unit wind-proof capacity is F=f×N (f=0.46), and the number installed per crane is set by wind load. It suits wind-proofing during operation and anchoring at rest for outdoor rail cranes.
Our Advantage
Wedge drops by gravity to grip the wheel, auto wind-proof even on power loss, with firm, reliable anchoring.

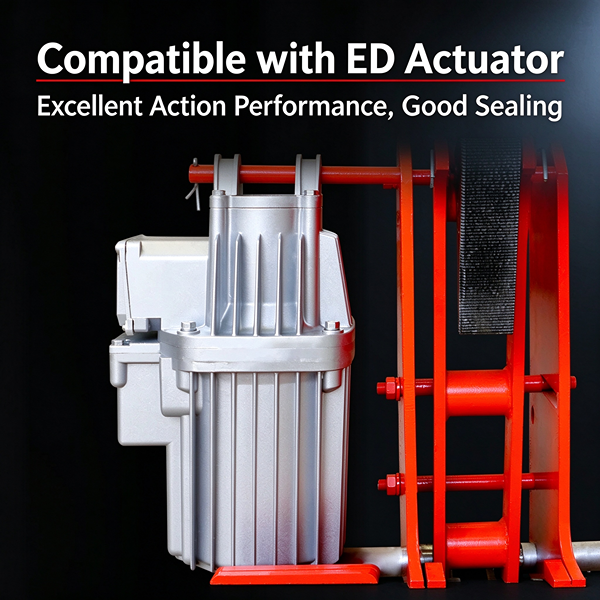

Matched with ED electro-hydraulic thruster for smooth, flexible lifting and long service life.

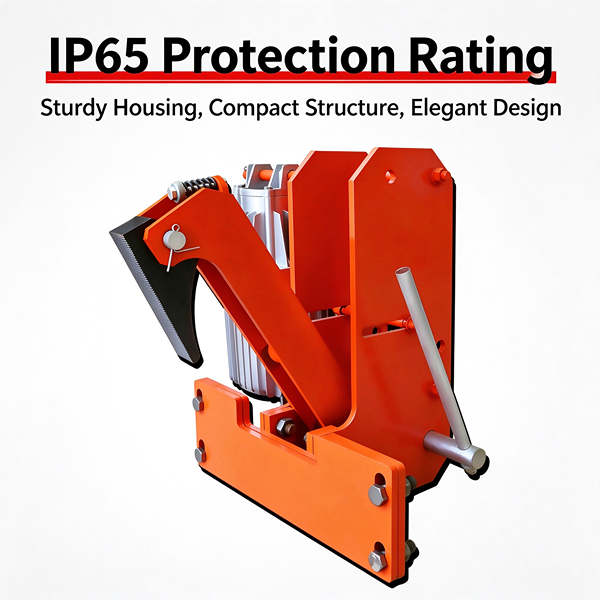

Welded steel frame with wedge-on-rail friction braking is simple, low-maintenance, and suits harsh conditions.
Wind-proof during operation and anchoring at rest, providing all-weather safety for outdoor cranes.
Series models by wheel diameter with a clear capacity formula allow precise selection per crane wind load.
Specification
| Model | Wheel Ø (mm) | Matched Thruster | Power |
| YFX-350/80 | 350 | ED80/6 | AC 380V 50Hz |
| YFX-400/80 | 400 | ED80/6 | AC 380V 50Hz |
| YFX-450/80 | 450 | ED80/6 | AC 380V 50Hz |
| YFX-500/80 | 500 | ED80/6 | AC 380V 50Hz |
| YFX-550/80 | 550 | ED80/6 | AC 380V 50Hz |
| YFX-600/80 | 600 | ED80/6 | AC 380V 50Hz |
| YFX-630/80 | 630 | ED80/6 | AC 380V 50Hz |
| YFX-700/80 | 700 | ED80/6 | AC 380V 50Hz |
| YFX-710/80 | 710 | ED80/6 | AC 380V 50Hz |
| YFX-800/80 | 800 | ED80/6 | AC 380V 50Hz |
