Introduction
The electric chain hoist uses alloy steel round link chain instead of wire rope as the lifting medium, with sprocket-chain meshing drive, featuring good guidance, no rope tangling and easy maintenance. Modular design supports fixed, trolley-mounted and inverted mounting forms, as well as dual-hook parallel synchronous operation. With overload protection, limit protection, phase-loss protection and other safety features, it operates smoothly with low noise, being a mainstream choice for light-duty lifting equipment.
Application
Automotive industry
Medical industry
Machinery industry
Amusement facilities industry
Clothing industry / Apparel industry
Our Advantage
Round link chain allows multi-directional bending with small sprocket diameter, reducing overall volume and weight by about 30% compared with wire rope hoists of the same capacity, ideal for low workshops and space-constrained areas.

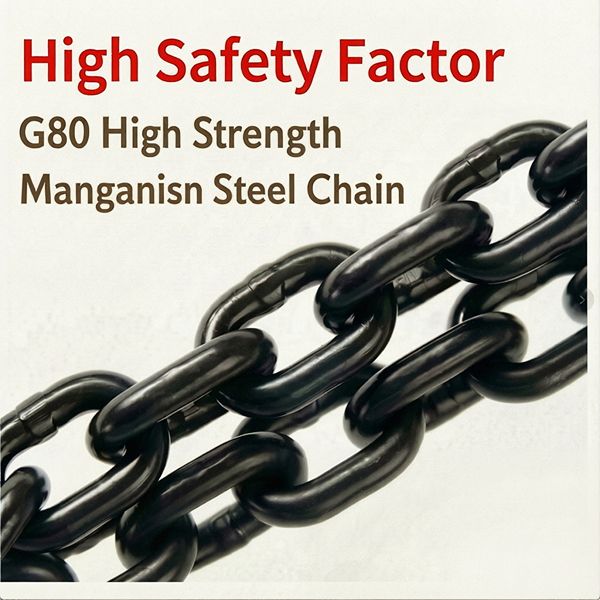

High-strength alloy steel chain with heat treatment and surface coating is wear-resistant and corrosion-proof, eliminating wire rope tangling and kinking issues, with long service life and easy maintenance.

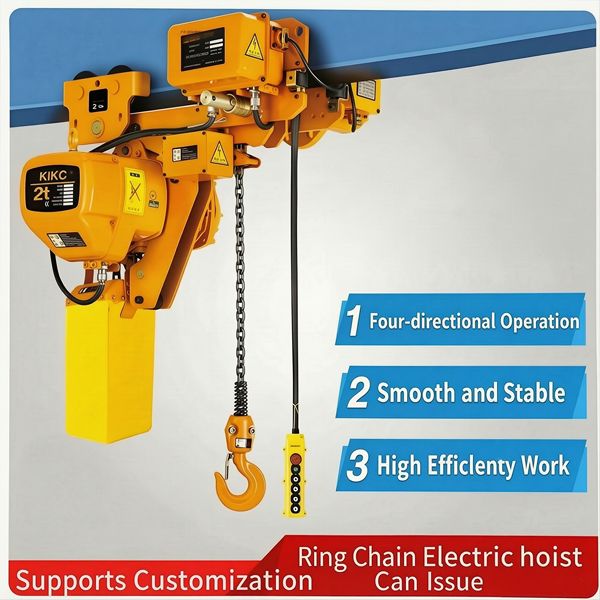

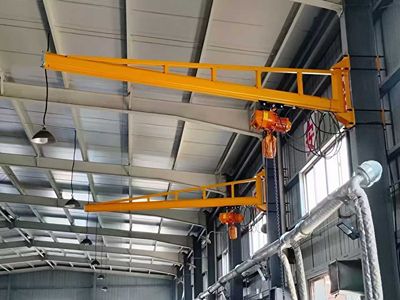

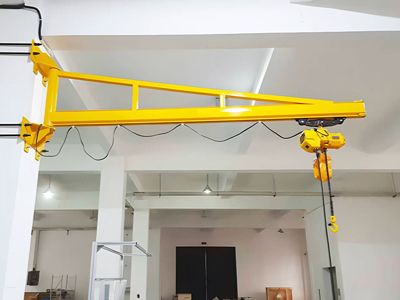

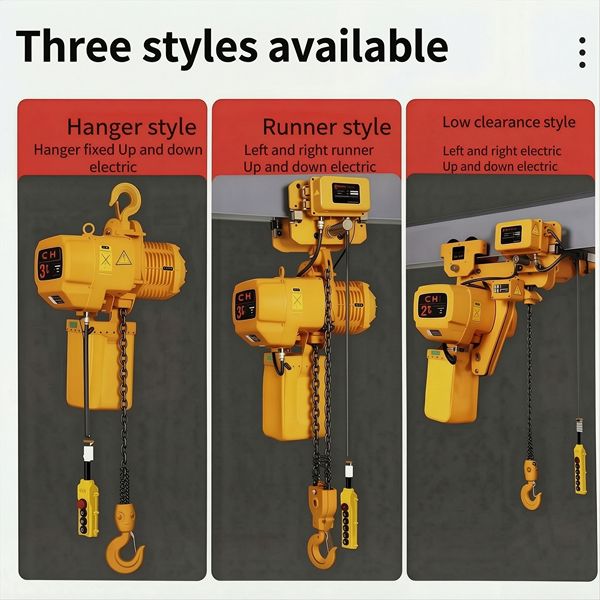

Supporting fixed, manual trolley, electric trolley and inverted mounting, compatible with single-girder, double-girder, jib cranes and KBK rails, with extremely strong adaptability.
Normal speed ensures efficient lifting while slow speed enables accurate positioning, with typical speed ratio of 2:1 and convenient switching, balancing efficiency and precision.
Standard overload clutch, upper/lower limit, phase-loss protection and electromagnetic brake ensure fast braking response and small slip, fully protecting personnel and cargo.
Specification
| Parameter | 0.25t | 0.5t | 1t | 2t | 3t | 5t | 10t | 16t | 20t | 32t | 50t |
| Rated Capacity | 0.25t | 0.5t | 1t | 2t | 3t | 5t | 10t | 16t | 20t | 32t | 50t |
| Lifting Height | 3~30m | 3~30m | 3~30m | 3~30m | 3~30m | 3~30m | 3~30m | 3~20m | 3~20m | 3~15m | 3~10m |
| Lifting Speed (N/S) | 8/4 | 8/4 | 8/4 | 5/2.5 | 4/2 | 3.2/1.6 | 2.5/1.25 | 1.6/0.8 | 1.3/0.65 | 1.0/0.5 | 0.8/0.4 |
| Traveling Speed | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 10 | 10 |
| Hoisting Motor | 0.4kW | 0.6kW | 1.0kW | 1.5kW | 2.0kW | 3.0kW | 4.0kW | 5.0kW | 6.0kW | 7.5kW | 10kW |
| Trolley Motor | 0.2kW | 0.2kW | 0.2kW | 0.4kW | 0.4kW | 0.4kW | 0.8kW | 0.8kW×2 | 0.8kW×2 | 1.5kW×2 | 1.5kW×2 |
| Chain Size | 6mm | 7mm | 8mm | 10mm | 10mm | 13mm | 16mm | 18mm | 20mm | 22mm | 24mm |

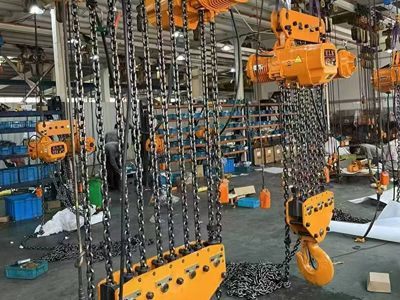

| Chain Falls | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 4 | 4 | 6 | 8 |
| Working Class | M3 | M3 | M3 | M3 | M3 | M3 | M3 | M3 | M3 | M3 | M3 |
