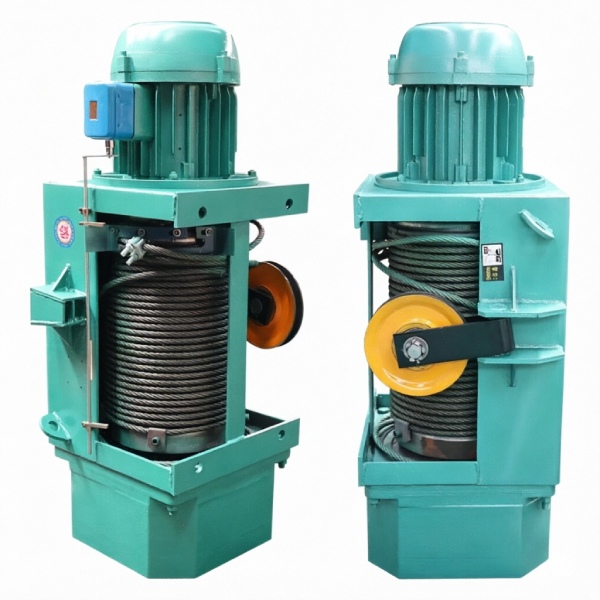

HC Type Wire Rope Electric Hoist

The HC electric wire rope hoist is a heavy-duty, box-type hoist with modular design, covering capacities from 5t to 100t and lifting heights up to 100m. It is widely used in heavy workshops, bridge construction, shipbuilding and other large-load lifting applications.

Lifting Capacity

16t~100t

Lifting Height

6~100 m

Lifting Speed

0.8 ~ 8 m/min(single or dual speed)

Working Class

Voltage Rating

380V-660V/50Hz

Send Email

https://www.xindacrane.com/wp-content/uploads/2026/09/HC-type-wire-rope-electric-hoist-1.jpg

https://www.xindacrane.com/wp-content/uploads/2026/01/CD-Type-Single-Speed-Electric-3.jpg

https://www.xindacrane.com/wp-content/uploads/2026/01/CD-Type-Single-Speed-Electric-4.jpg

https://www.xindacrane.com/wp-content/uploads/2026/01/CD-Type-Single-Speed-Electric-5.jpg

https://www.xindacrane.com/wp-content/uploads/2026/01/CD-Type-Single-Speed-Electric-1.jpg

https://www.xindacrane.com/wp-content/uploads/2026/01/CD-Type-Single-Speed-Electric-7.jpg

https://www.xindacrane.com/wp-content/uploads/2026/09/HC-type-wire-rope-electric-hoist.jpg

https://www.xindacrane.com/wp-content/uploads/2026/09/HC-type-wire-rope-electric-hoist-2.jpg

https://www.xindacrane.com/wp-content/uploads/2026/09/HC-type-wire-rope-electric-hoist-3.jpg

Introduction

The HC hoist features a welded box-type housing with robust structure and high rigidity, capable of withstanding heavy-load impacts. Equipped with high-performance hoisting motors and reducers, it delivers smooth operation and reliable braking. Supporting single-speed, dual-speed and variable-frequency control, it can be paired with single-girder, double-girder, gantry cranes or fixed hoisting units to meet various heavy-duty lifting requirements.

Application

Automotive industry

Medical industry

Machinery industry

Amusement facilities industry

Clothing industry / Apparel industry

Our Advantage

High load capacity

Ranging from 5t to 100t, the box-type housing provides high rigidity to withstand heavy impacts, ideal for heavy machinery, metallurgy and shipbuilding.

Large lifting height

Standard lift up to 100m with extended drum and orderly rope arrangement, meeting special demands for deep pits and high workshops.

Modular structure for easy maintenance

Motor, reducer and drum are modularized for convenient assembly and disassembly, reducing maintenance costs with high spare-part compatibility.

Smooth operation and reliable braking

Equipped with conical-rotor brake motor or electromagnetic brake for fast response and precise positioning, with dual-brake protection enhancing safety.

Flexible speed control

Supporting single-speed, dual-speed and variable-frequency options, optimal lifting speed can be selected for each scenario, balancing efficiency and precision with strong adaptability.

Specification

Parameter	16t	20t	32t	50t	80t	100t
Rated Capacity	16 t	20 t	32 t	50 t	80 t	100 t
Lifting Height	6~100 m	6~100 m	6~100 m	6~100 m	6~100 m	6~100 m
Lifting Speed (single)	3.5 m/min	3.5 m/min	2.5 m/min	1.5 m/min	1.0 m/min	0.8 m/min
Lifting Speed (dual)	3.5/0.35	3.5/0.35	2.5/0.25	1.5/0.15	1.0/0.1	0.8/0.08
Traveling Speed	20 m/min	20 m/min	15 m/min	15 m/min	10 m/min	10 m/min
Hoisting Motor	13 kW	18.5 kW	22 kW	30 kW	37 kW	45 kW
Trolley Motor	0.8kW×2	0.8kW×2	1.5kW×2	1.5kW×2	2.2kW×2	2.2kW×2
Wire Rope Dia.	Φ17.5×2	Φ20×2	Φ22×2	Φ26×2	Φ28×4	Φ30×4
