Introduction

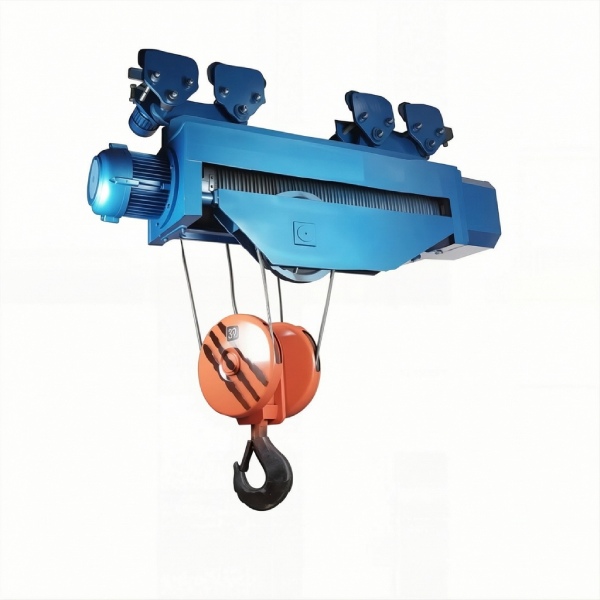

The metallurgical hoist is designed strictly per metallurgical crane safety regulations, with dual brakes (service brake + safety brake) for double protection to prevent braking torque attenuation at high temperatures. Motors, reducers and electrical components are fitted with heat insulation shields, withstanding ambient temperature up to 60°C and radiant heat from molten metal. Wire rope adopts high-temperature resistant special material with anti-derailment rope guide. Featuring overload, over-temperature, limit and other protections, it is dedicated equipment for lifting steel ladles, iron ladles and high-temperature forgings in metallurgical workshops.
Application
Automotive industry
Medical industry
Machinery industry
Amusement facilities industry
Clothing industry / Apparel industry
Our Advantage
Multi-layer heat shields on motor, reducer and electrical box enable stable long-term operation at 60°C ambient temperature and strong thermal radiation, protecting key components from heat damage.
Hoisting mechanism is equipped with service brake and safety brake; even if one brake fails due to high temperature, the other still brakes reliably, eliminating hook slipping accidents.
Special heat-resistant wire rope and alloy hook withstand thermal radiation and splashing burns, resisting annealing and deformation, with service life over 50% longer than conventional ropes.
High-capacity models are equipped with forced air cooling to quickly dissipate heat generated by motors and brakes, ensuring overall temperature stays within safe range during continuous high-temperature operation.
Standard overload limiter, upper/lower limits, over-temperature alarm, anti-derailment rope guide and emergency stop monitor operation status in real time, comprehensively ensuring personnel and equipment safety in high-risk metallurgical environments.
Specification
| Parameter | 5t | 10t | 16t | 20t | 32t | 50t | 80t | 100t |
| Rated Capacity | 5t | 10t | 16t | 20t | 32t | 50t | 80t | 100t |
| Lifting Height | 6~30m | 6~30m | 6~24m | 6~24m | 6~20m | 6~20m | 6~15m | 6~15m |
| Lifting Speed (N/S) | 8/0.8 | 7/0.7 | 3.5/0.35 | 3.5/0.35 | 2.5/0.25 | 1.5/0.15 | 1.0/0.1 | 0.8/0.08 |
| Traveling Speed | 20 | 20 | 20 | 20 | 15 | 15 | 10 | 10 |
| Hoisting Motor | 7.5kW | 13kW | 13kW | 18.5kW | 22kW | 30kW | 37kW | 45kW |
| Trolley Motor | 0.8kW | 0.8kW×2 | 0.8kW×2 | 0.8kW×2 | 1.5kW×2 | 1.5kW×2 | 2.2kW×2 | 2.2kW×2 |
| Wire Rope | Φ17.5 | Φ15.5×2 | Φ17.5×2 | Φ20×2 | Φ22×2 | Φ26×2 | Φ28×4 | Φ30×4 |
| Braking | dual | dual | dual | dual | dual | dual | dual | dual |
| Working Class | M3 | M3 | M3 | M3 | M3 | M3 | M3 | M3 |
