Introduction

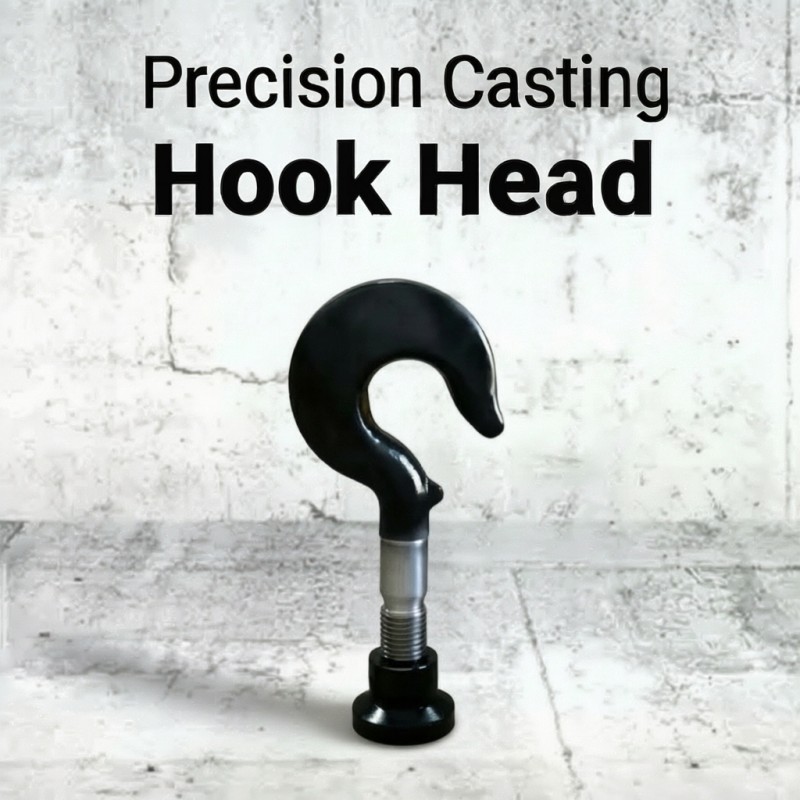

The insulated hook uses high-strength insulating material (epoxy fiberglass laminate or polyimide) as the intermediate insulation layer, completely electrically isolating the hook crossbeam from the pulley frame, while insulating sleeves and washers are installed at metal connectors such as pins and bolts to achieve full-path insulation protection. The hook body is still forged from quality alloy steel with high strength and toughness after heat treatment, without affecting load capacity. Tested via power-frequency withstand voltage test with stable and reliable insulation performance, it can be used long-term in humid and corrosive environments, serving as an essential safety load attachment for live or induced-electric sites such as power maintenance, aluminum electrolysis workshops and electroplating lines.
Application
Automotive industry
Medical industry
Machinery industry
Amusement facilities industry
Clothing industry / Apparel industry
Our Advantage

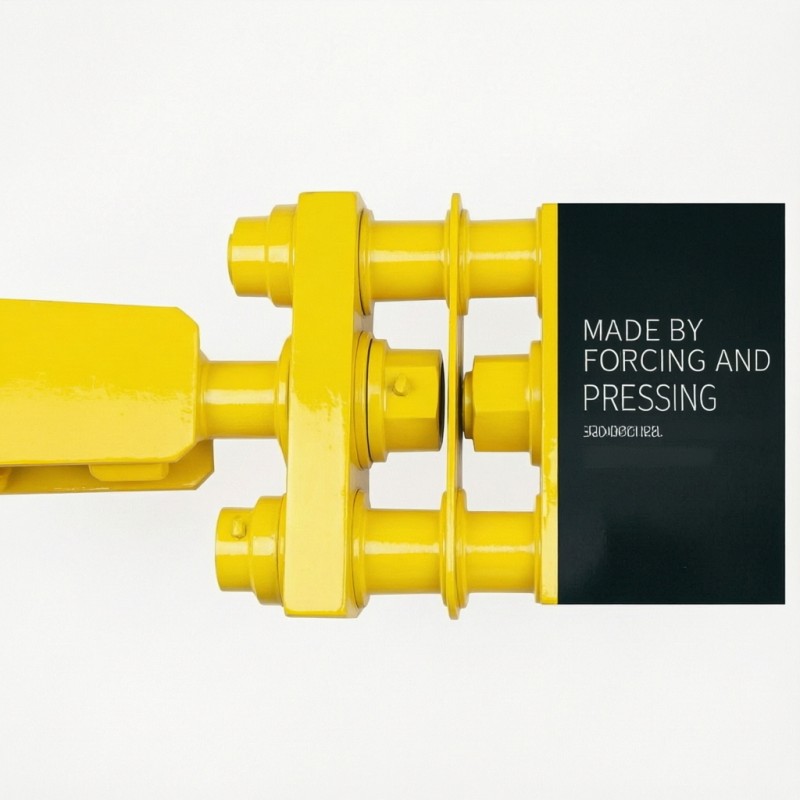

A main insulation layer is installed between hook crossbeam and pulley frame, with insulating sleeves and washers on all metal connectors such as pins and bolts, achieving 100% blocking of current conduction path and eliminating electric shock risk.
Epoxy fiberglass laminate or polyimide insulation layer offers high compressive strength, stable insulation performance, moisture/corrosion/aging resistance, with no insulation degradation during long-term use.
Insulation grades of 1kV, 10kV and 35kV are offered, flexibly selectable according to working environment voltage, meeting safety needs from low-voltage distribution to high-voltage transmission live working scenarios.
Insulation layer dimensions and structure are optimized via mechanical calculation, ensuring insulation performance without reducing rated load capacity, with safety factor still ≥4 times for reliable heavy-duty operation.
Retains 360° free rotation and spring-loaded anti-derailment latch, automatically adapting to load direction and preventing wire rope kinking during lifting, with automatic latching after sling insertion for convenient and safe operation.
Specification
| Parameter | 0.5t | 1t | 2t | 3t | 5t | 10t | 16t | 20t | 32t |
| Rated Capacity | 0.5t | 1t | 2t | 3t | 5t | 10t | 16t | 20t | 32t |

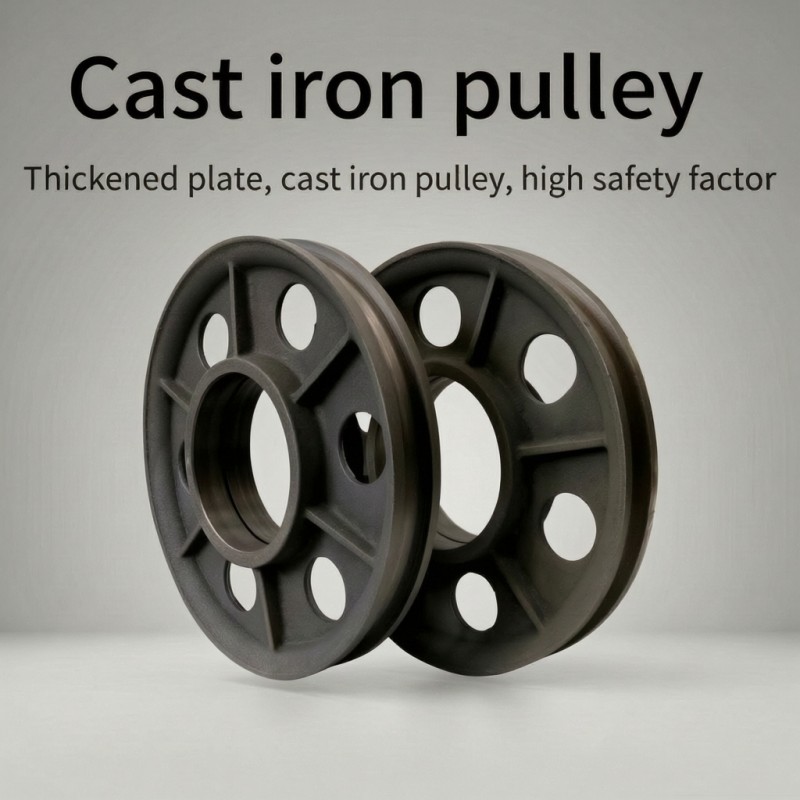

| Pulley Dia. | Φ150 | Φ150 | Φ200 | Φ200 | Φ250 | Φ300 | Φ350 | Φ400 | Φ450 |
| Number of Pulleys | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Wire Rope | Φ7.7 | Φ11 | Φ13 | Φ15 | Φ17.5 | Φ15.5×2 | Φ17.5×2 | Φ20×2 | Φ22×2 |
| Insulation Grade | 1/10/35kV | 1/10/35kV | 1/10/35kV | 1/10/35kV | 1/10/35kV | 1/10/35kV | 1/10/35kV | 1/10/35kV | 1/10/35kV |
| Insulation Resistance | ≥5MΩ | ≥5MΩ | ≥5MΩ | ≥5MΩ | ≥5MΩ | ≥5MΩ | ≥5MΩ | ≥5MΩ | ≥5MΩ |
| Hook Opening | ~18mm | ~20mm | ~25mm | ~28mm | ~32mm | ~38mm | ~45mm | ~50mm | ~60mm |
| Hook Material | 20# | 20# | 20# | 20# | 20# | DG20Mn | DG20Mn | DG20Mn | DG20Mn |
| Insulation Material | epoxy fiberglass | epoxy fiberglass | epoxy fiberglass | epoxy fiberglass | epoxy fiberglass | epoxy fiberglass | epoxy fiberglass | epoxy fiberglass | epoxy fiberglass |
| Safety Factor | ≥4 | ≥4 | ≥4 | ≥4 | ≥4 | ≥4 | ≥4 | ≥4 | ≥4 |
| Rotation | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° |
| Safety Latch | std | std | std | std | std | std | std | std | std |
