Introduction

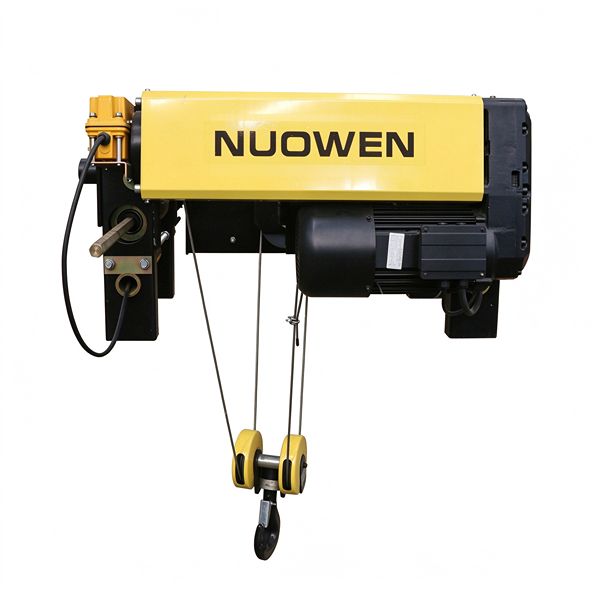

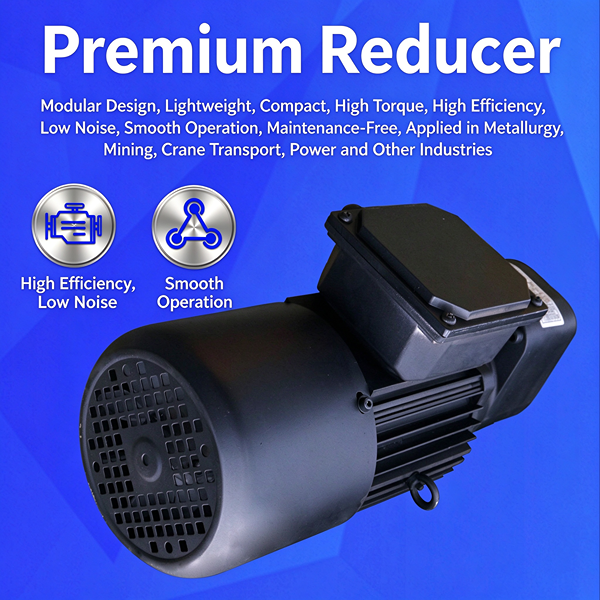

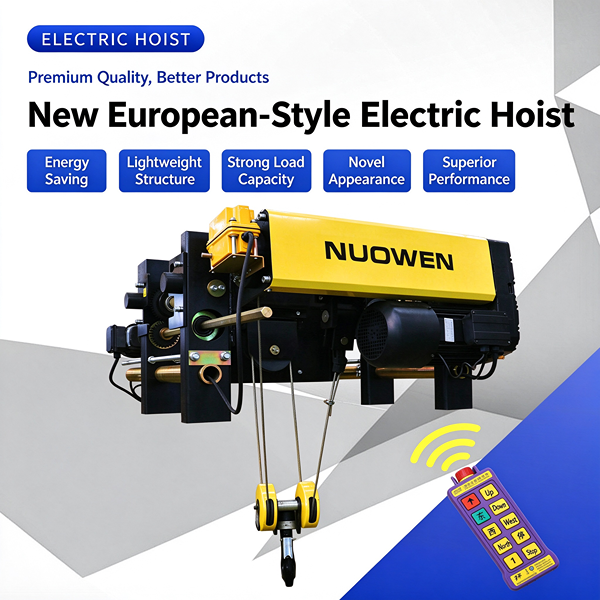

The European wire rope electric hoist adopts a “three-in-one” transmission design with an alloy-steel hardened-face three-stage reduction gearbox, a new self-cooling conical-rotor or VFD motor (up to 4800 r/min), and a disc brake—compact, smooth-running, and long-lasting. With IP54/IP55 protection, Class F insulation, and semi-grease lubrication, it is maintenance-free. Equipped with overload, height, and travel limit protection plus 24V low-voltage control and stepless VFD speed regulation, it delivers precise lifting and smooth positioning for workshops, warehouses, and assembly lines needing low-headroom, high-efficiency handling.
Our Advantage
Compact modular design with minimal headroom maximizes usable lifting height in plants.
Hardened gears plus VFD control give smooth start/stop and precise positioning with high efficiency.
Aluminum housing and lightweight structure reduce dead weight and energy use, easing overall crane load.

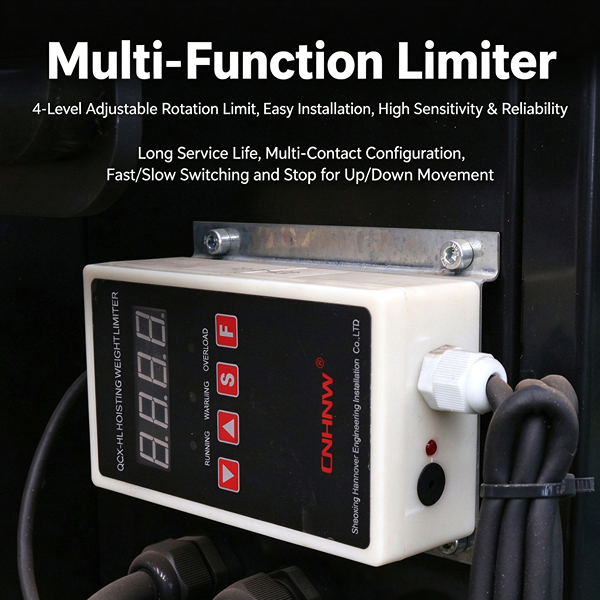

Overload, height, and travel limits with reliable disc braking and 24V low-voltage control enhance safety.
Semi-grease lubrication and good sealing with IP55 and Class F insulation give long life and low maintenance.
Specification
| Capacity (t) | Working Level | Lifting Height (m) | Lifting Speed (m/min) | Traveling Speed (m/min) |
| 1 | M4 – M5 | 6 / 9 / 12 | 8 | 2 – 20 |
| 2 | M4 – M5 | 6 – 18 | 8 | 2 – 20 |
| 3.2 | M5 | 6 – 18 | 6 | 2 – 20 |
| 5 | M5 | 6 – 18 | 6 | 2 – 20 |
| 10 | M5 – M6 | 6 – 18 | 4 | 2 – 20 |
| 16 | M5 – M6 | 6 – 18 | 4 | 2 – 20 |
| 20 | M5 – M6 | 6 – 18 | 3.5 | 2 – 20 |
