Introduction

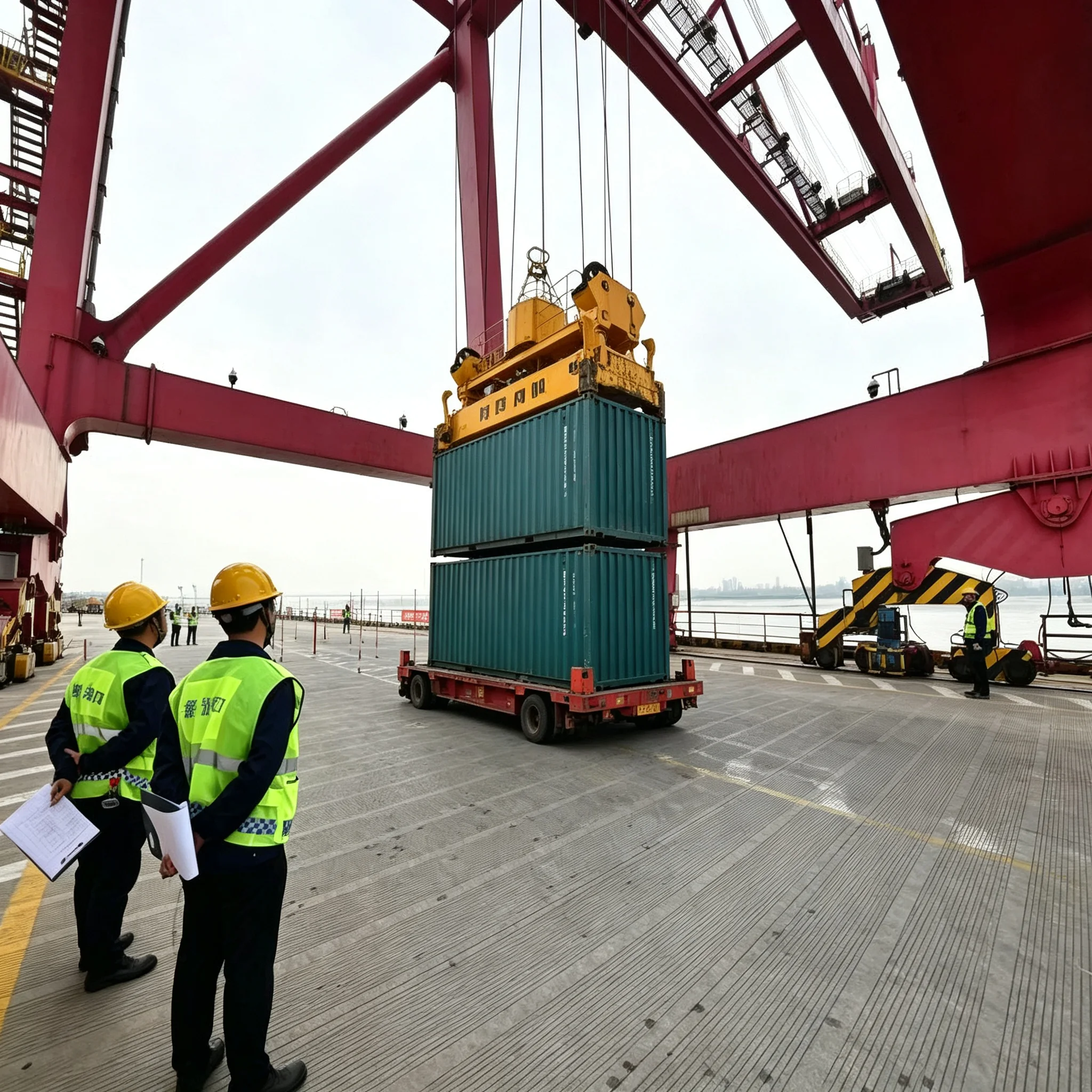

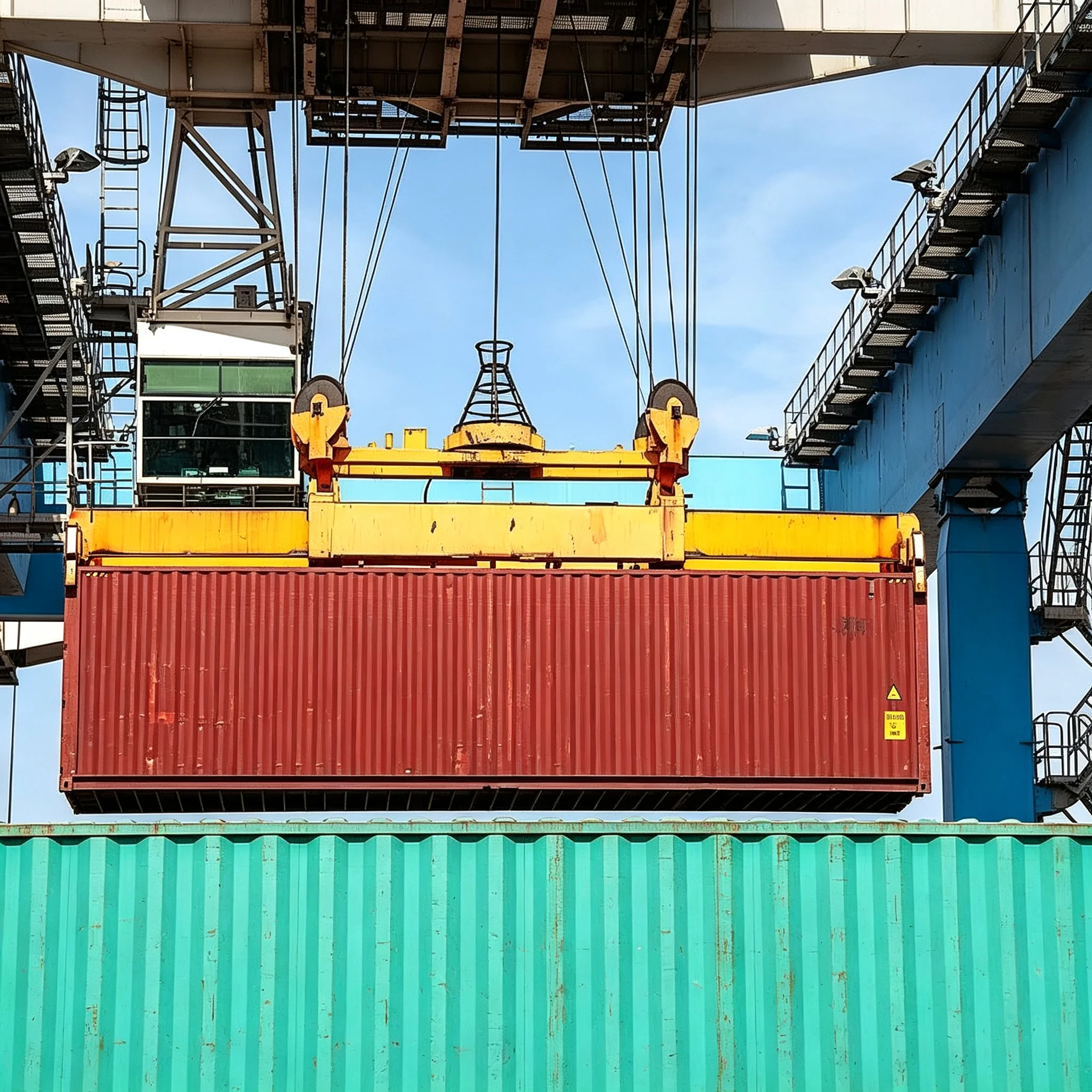

The freight container spreader consists of spreader body, end beams, twist-lock mechanism, guide device, hydraulic system (hydraulic type) and lifting lugs. The spreader body is welded from high-strength low-alloy steel plates into a box-type structure, annealed to eliminate internal stress, with good rigidity, strong load capacity and small deformation. During operation, the spreader descends to the top of the container, the guide device guides the spreader to align with the four corners of the container, the twist-lock mechanism inserts into the corner fitting holes of the container and rotates 90° to lock, then the container can be lifted; after lifting to the destination, the twist-lock rotates 90° in reverse to unlock, then the container can be unloaded. Fixed spreaders are compatible with a single container specification, with simple structure and low cost; telescopic spreaders adjust length through hydraulic or mechanical telescoping, compatible with 20ft, 40ft, 45ft and other container specifications, with strong versatility; hydraulic spreaders are equipped with a hydraulic pump station, twist-lock, telescoping and guiding are all hydraulically driven, with stable action and high automation. The spreader is equipped with safety functions such as twist-lock position indication, safety interlock and anti-fall device, ensuring lifting safety. The freight container spreader can be used with bridge cranes, gantry cranes, quay container cranes, rail-mounted gantry cranes, reach stackers, etc., serving as a dedicated and efficient sling for container loading/unloading and transfer at ports, terminals, freight yards, railway stations and logistics centers.
Application
Our Advantage
Specially designed for standard freight containers, the twist-lock mechanism locks and connects with the corner fittings at the four corners of the container, with firm connection and uniform force, the container does not sway or fall off during lifting; safety factor ≥4 times, tested via 1.25× rated load static test, ensuring safe heavy-load container lifting, far superior to wire rope binding lifting.
The twist-lock mechanism rotates 90° after inserting into the corner fitting hole to lock, rotates in reverse to unlock, simple operation and reliable locking; hydraulic spreader twist-lock, telescoping and guiding are all hydraulically driven, one-click locking and unlocking, single container lifting cycle time shortened by over 70% compared with manual binding, greatly improving container loading/unloading efficiency at ports and freight yards.
Telescopic spreaders adjust spreader length through hydraulic or mechanical telescoping, compatible with 20ft, 40ft, 45ft and other standard containers, one spreader replaces multiple fixed spreaders, reducing spreader replacement time and storage space; telescopic positioning is precise and locking is reliable, especially suitable for comprehensive ports, logistics centers and railway stations with diverse container specifications.
The four corners of the spreader are equipped with guide cones or guide plates, which automatically guide the spreader to align with the four corners of the container during descent, enabling quick alignment even if the container is placed with deviation, no manual auxiliary alignment needed; the guide device adopts wear-resistant alloy steel, durable, greatly reducing operator labor intensity and improving container lifting alignment efficiency and safety.

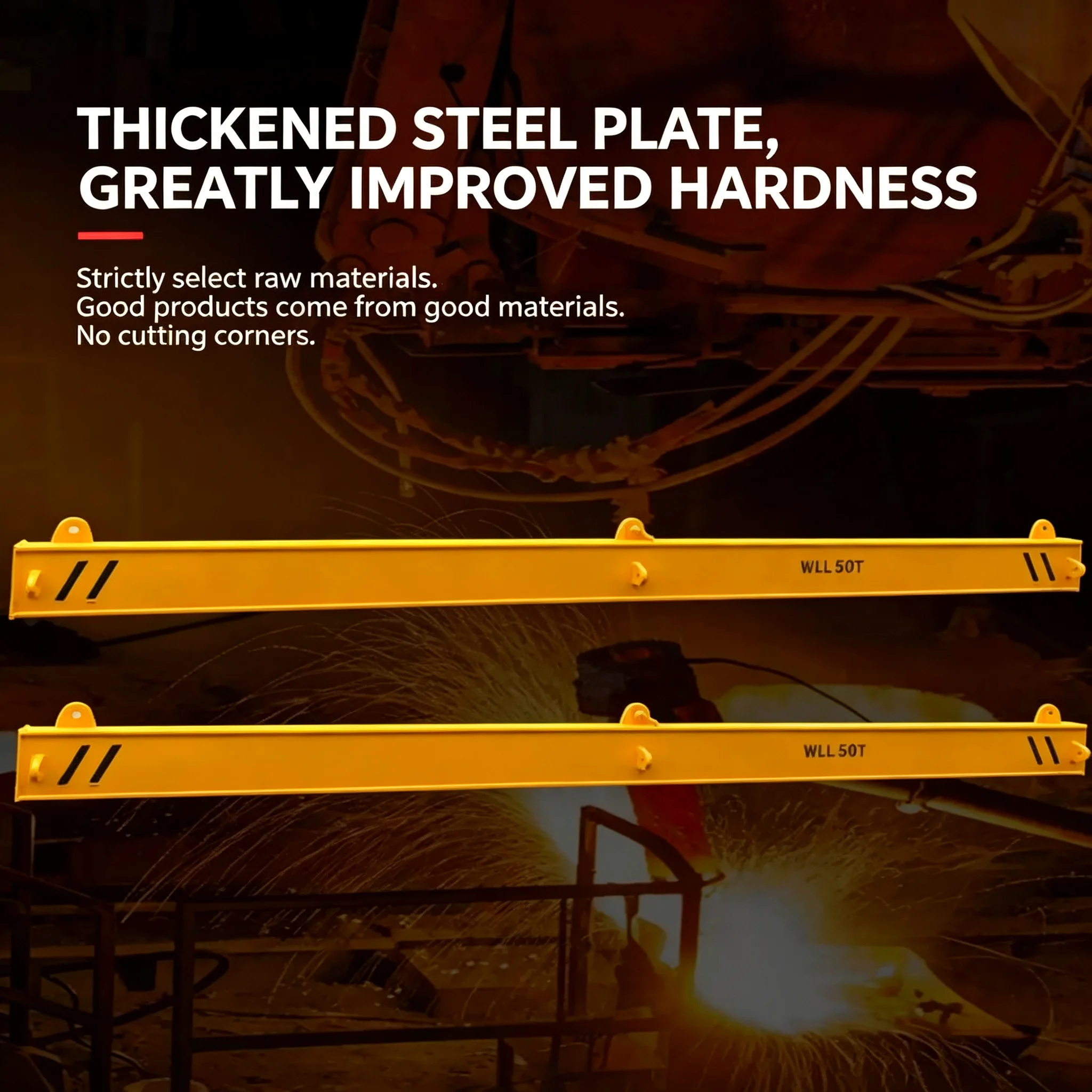

The spreader body is welded from high-strength low-alloy steel plates into a box-type structure, annealed after welding to eliminate internal stress, with good rigidity, strong load capacity and small deformation; twist-locks and pins adopt high-strength alloy steel, with high strength and wear resistance after heat treatment; normal service life over 10 years, suitable for 24-hour continuous operation and harsh marine environments at ports and terminals, low maintenance cost and long whole machine service life.
Specification
| Parameter | 20ft | 40ft | 45ft | Telescopic (20~45ft) |
| Rated Capacity | 20~30t | 30~40t | 40~50t | 30~50t |
| Applicable Container | 20ft Standard Container | 40ft Standard Container | 45ft Standard Container | 20ft/40ft/45ft |
| Spreader Length | ~6100mm | ~12200mm | ~13700mm | 6100~13700mm (Telescopic) |
| Spreader Width | ~2500mm | ~2500mm | ~2500mm | ~2500mm |
| Number of Twist-locks | 4 pcs | 4 pcs | 4 pcs | 4 pcs |
| Twist-lock Type | Manual / Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Telescoping Method | — | — | — | Hydraulic / Mechanical |
| Guide Device | Guide Cone / Guide Plate | Same as Left | Same as Left | Same as Left |
| Safety Factor | ≥4 | ≥4 | ≥4 | ≥4 |
| Spreader Body Material | Q345B/Q355B Low Alloy Steel | Same as Left | Same as Left | Same as Left |
| Twist-lock Material | 40Cr Alloy Steel | Same as Left | Same as Left | Same as Left |
| Weight | ~1.5t | ~3t | ~3.5t | ~4~5t |
| Applicable Crane | Gantry / Overhead Crane | Same as Left | Same as Left | STS / RTG / Gantry Crane |
