Introduction

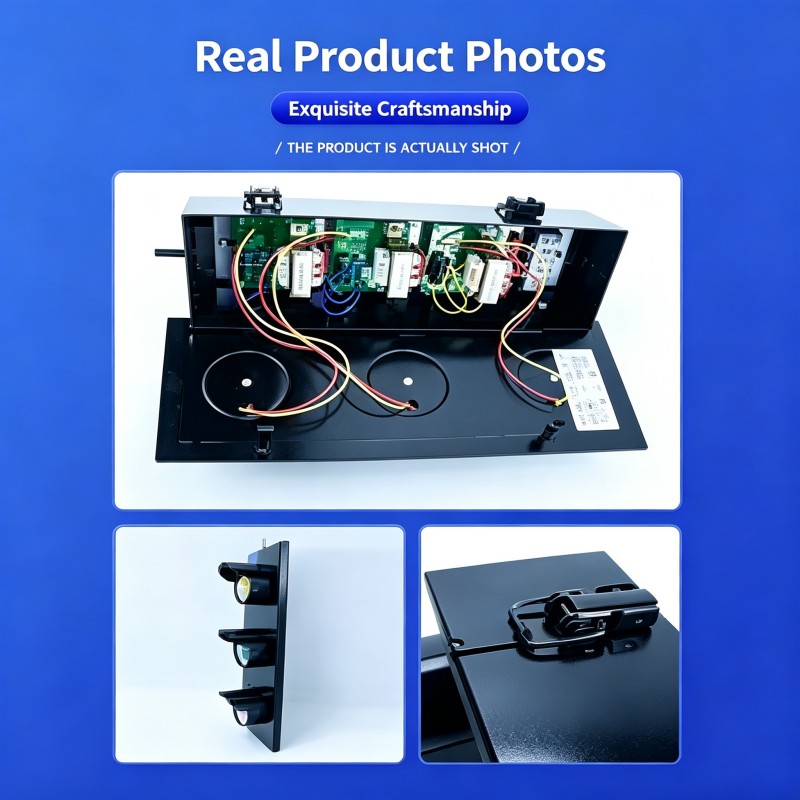

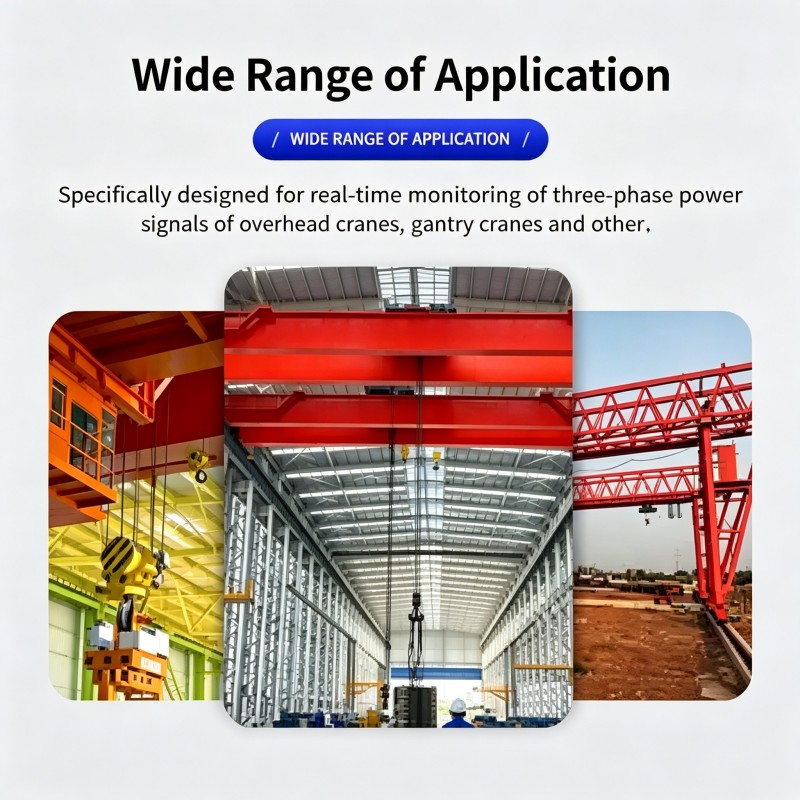

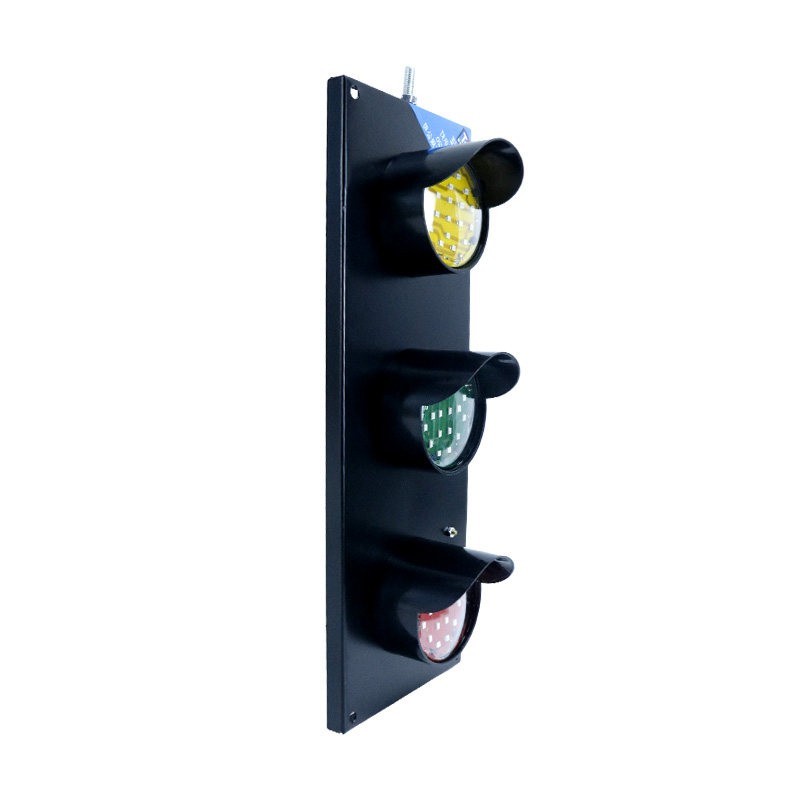

The LED power indicator for conductor rail consists of a step-down rectifier circuit, current-limiting resistors, three-color LED beads and sealed housing, connected in parallel to the conductor rail A/B/C three-phase power supply. During normal power supply, red, yellow and green LEDs light up simultaneously, visually indicating all three phases are normal; when any phase loses power, is undervoltage or has poor contact, the corresponding color LED extinguishes or dims, allowing operators to quickly identify the faulty phase. The product adopts high-brightness LED light source with service life up to 50,000 hours, power consumption only 1/10 of traditional incandescent indicators; the housing adopts ABS engineering plastic or cast aluminum material with fully sealed design, dust-proof, moisture-proof and impact-resistant. Flexible installation methods: can be directly clipped onto the conductor rail housing, fixed to the crane end beam or inside the electrical cabinet, with simple wiring, serving as an essential device for conductor rail system live status monitoring and safety warning.
Our Advantage
Red/yellow/green three-color LEDs correspond to three-phase power respectively; all three light up when normal, and any phase power failure extinguishes the corresponding light, allowing intuitive judgment of conductor rail live status and phase-loss faults, clearer and more reliable than ordinary single-light indicators.
Adopting high-brightness LED light source with service life over 50,000 hours, 20 times that of traditional incandescent lamps; overall power consumption only 3~20W, significant energy saving during long-term operation, and no frequent bulb replacement required, with extremely low maintenance cost.
Built-in wide-voltage step-down circuit supports AC12V~AC660V wide-range input, compatible with conductor rail systems of different voltage levels; LED brightness remains stable during voltage fluctuation, no flickering or burnout, with extremely strong versatility.

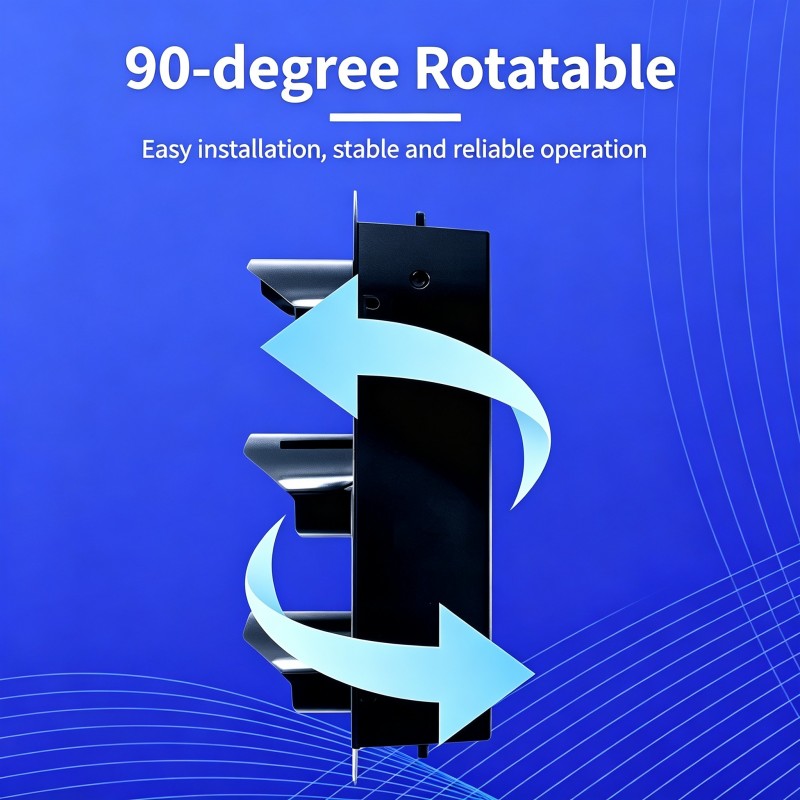

Compact size, supporting multiple methods such as conductor rail clipping, bolt fixing and rail mounting; three-phase wiring only requires parallel connection to A/B/C phase lines and neutral line, no additional debugging needed, lights up immediately after power-on, convenient for both new installation and renovation with low renovation cost.
ABS or cast aluminum fully sealed housing, dust-proof, moisture-proof, oil-proof and impact-resistant; internal circuit potted, ensuring long-term stable operation in dusty and humid harsh environments such as metallurgy, foundry, ports and outdoors.
Specification
| Product Model | HXC-50/3 HXC-100/3 HXC-150/3 HXC-200/3 and so on |
| Lamp holder diameter | 50mm 100mm 150mm 200mm |
| Rated Voltage | AC220V~660V |
| Single lamp Power | 8W |
| Display Color | Red / Yellow / Green (3-phase) |
| Frequency | 50/60Hz |

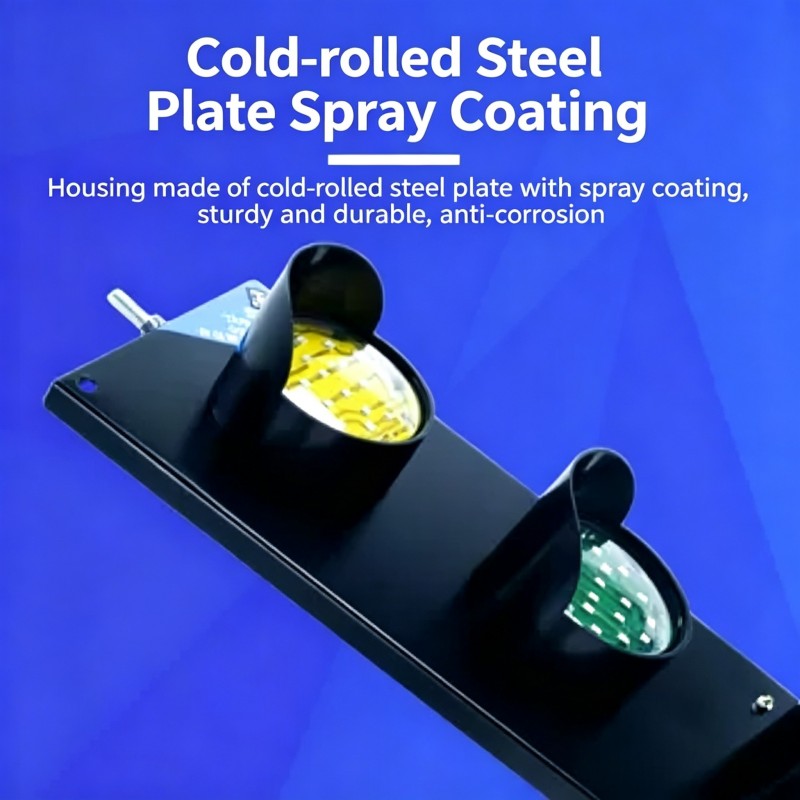

| Housing Material | Cold rolled steel |
| Installation | Clip / Bolt / Rail |
| Wiring | 3-phase 4-wire |
| Protection Grade | IP65 |
| Power | 3 ~ 20 W |
| Display | R/Y/G three-phase LED |
| Connection mode | Y-connection |
| Relative Humidity | ≤95% |
