Introduction

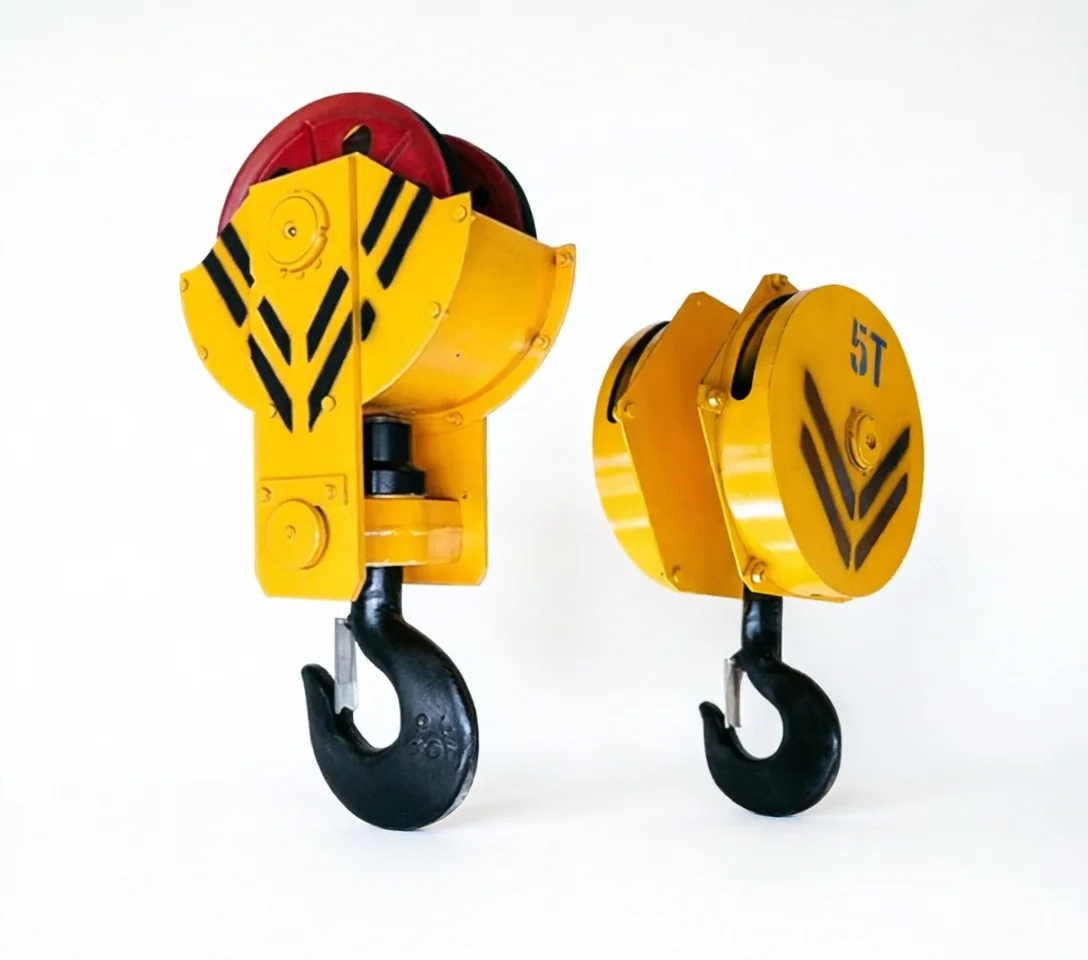

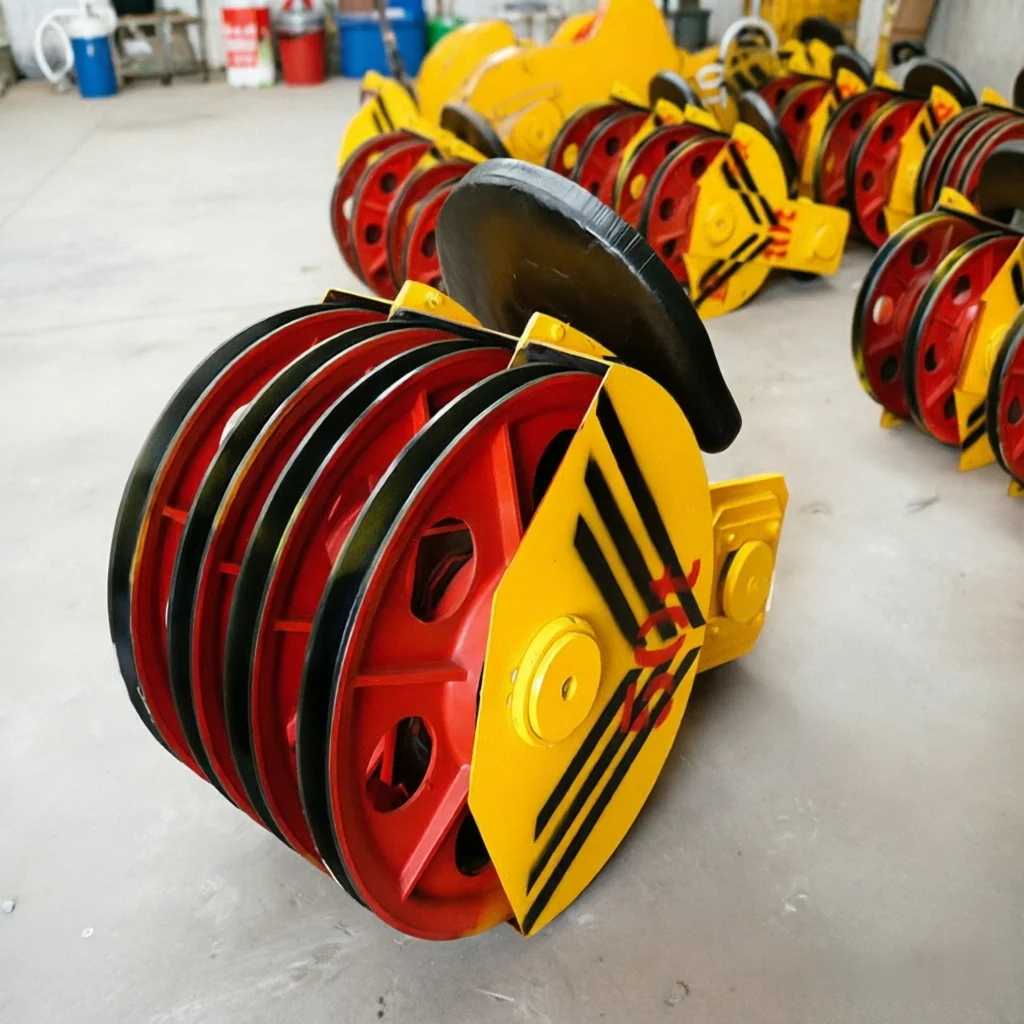

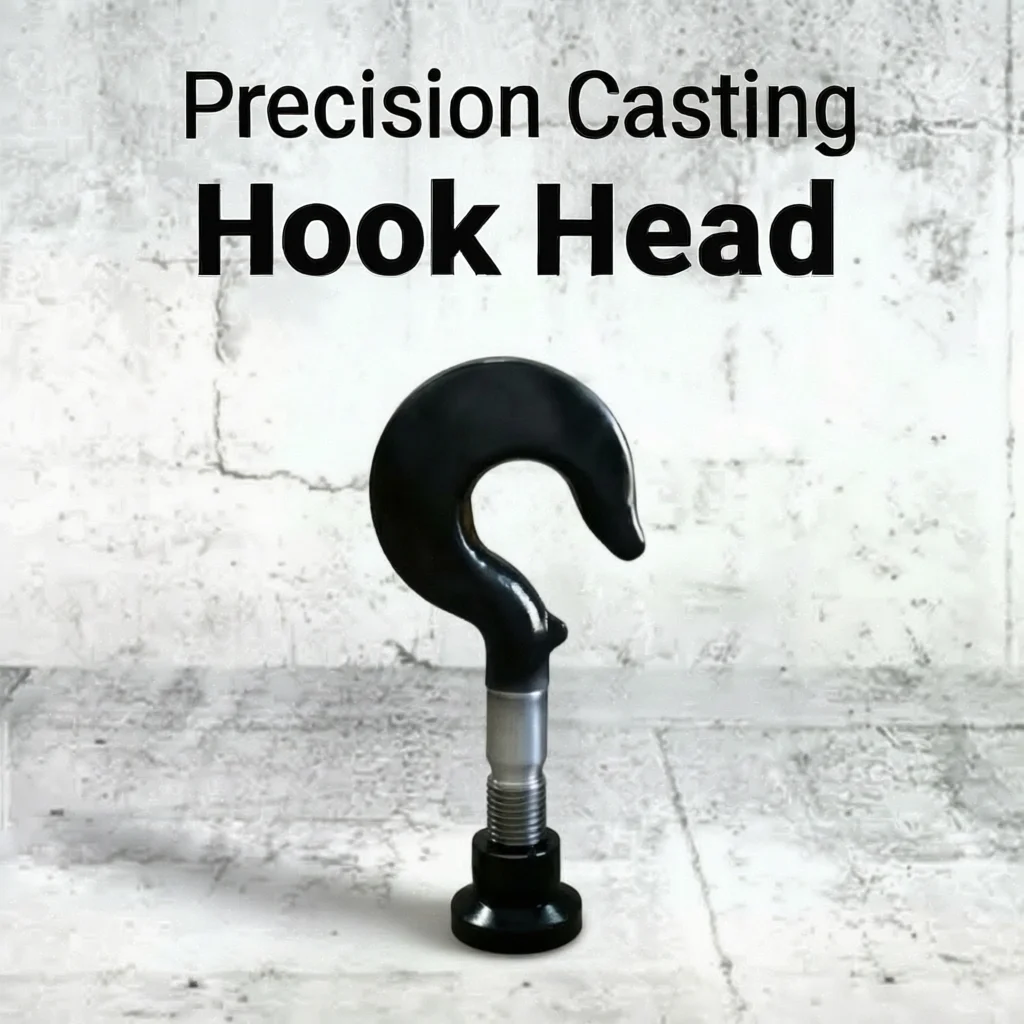

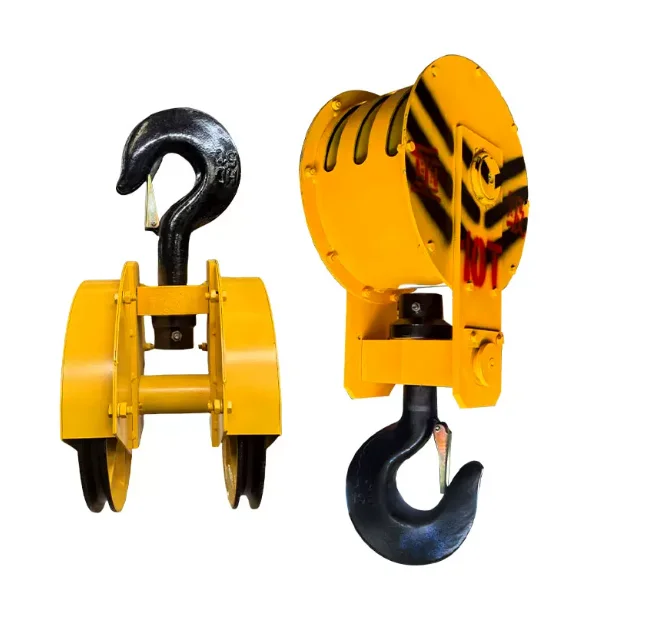

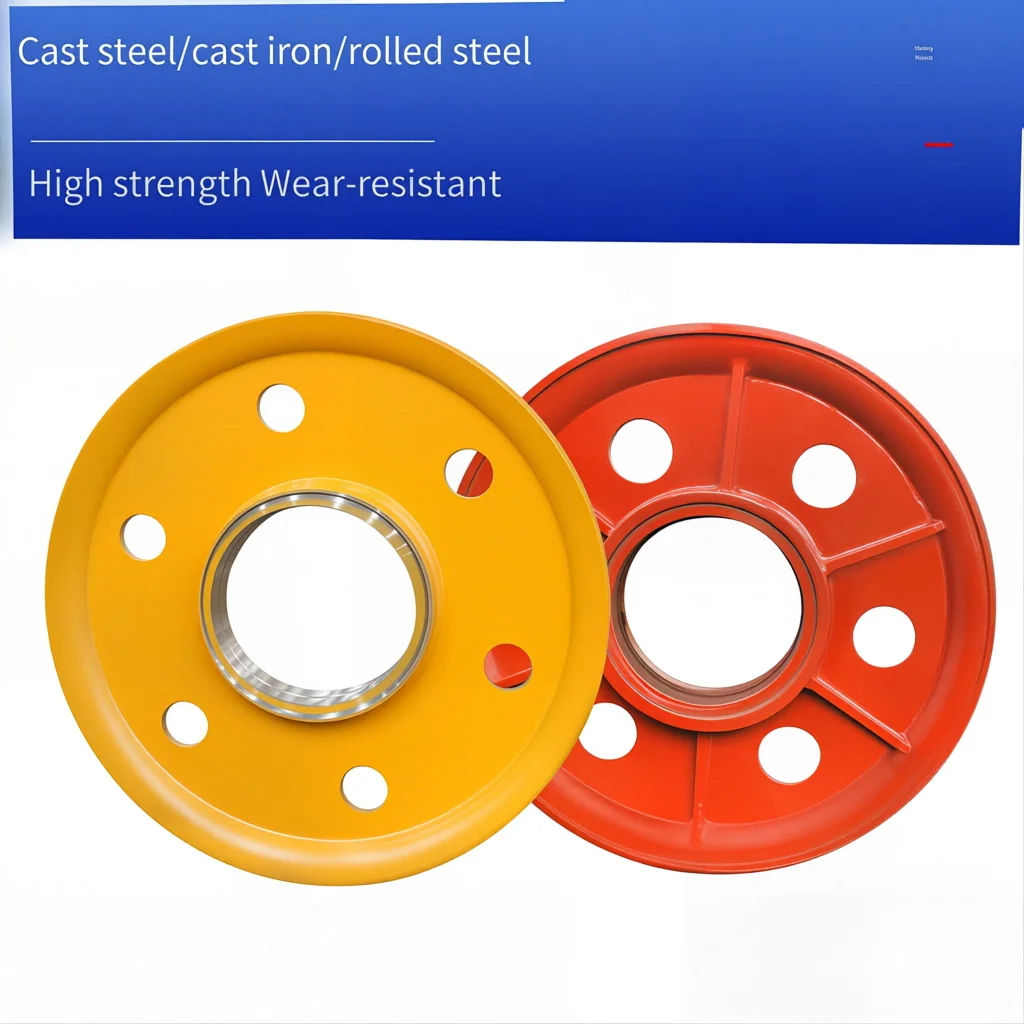

The metallurgical hook block consists of hook, pulley set, pulley shaft, crossbeam, bearings, heat insulation protection device and anti-fall device, specially designed for metallurgical high-temperature environments. The hook is integrally forged from high-quality alloy steel, special heat treatment, high-temperature resistant, high strength and good toughness; pulleys are made of cast steel, with machined rope grooves, wear-resistant and durable; crossbeam adopts high-strength alloy steel, with strong load capacity. The heat insulation protection device includes heat insulation plates, heat radiation baffles, high-temperature resistant protective covers, etc., effectively blocking high-temperature radiant heat from steel ladles and iron ladles, protecting pulleys, bearings, wire ropes and other components from high temperature, extending service life. During operation, the wire rope passes through the pulley set, transmitting the lifting force to the hook through the reeving mechanism to achieve lifting of high-temperature heavy objects such as steel ladles, iron ladles and steel ingots; the metallurgical hook block is connected to the metallurgical crane trolley frame through the crossbeam, suitable for metallurgical special lifting equipment such as casting cranes, charging cranes, stripping cranes and steel ladle cranes. The hook is equipped with an anti-fall pawl to prevent accidental unhooking of slings; pulleys are equipped with anti-rope-off baffles to prevent wire rope ; some models are equipped with a hook rotation device to facilitate steel ladle flipping and pouring. The metallurgical hook block safety factor ≥5 times, higher than general-purpose hook blocks, ensuring lifting safety in metallurgical heavy-load high-temperature environments, widely used in converter/electric furnace charging in steel mills, steel ladle lifting, iron ladle lifting in foundries, steel ingot lifting in rolling mills, serving as the core lifting device for high-temperature heavy object lifting in the metallurgical industry.
Application
Our Advantage
Specially designed for metallurgical high-temperature environments, equipped with multi-layer heat insulation protection devices such as heat insulation plates, heat radiation baffles and high-temperature resistant protective covers, effectively blocking high-temperature radiant heat from steel ladles and iron ladles (can withstand ≤300°C radiant heat), protecting pulleys, bearings, wire ropes and other components from high temperature, ensuring lifting safety in high-temperature environments, far superior to general-purpose hook blocks.
Metallurgical hook block safety factor ≥5 times, higher than general-purpose hook blocks (≥4 times), key components such as hooks, crossbeams and pulley shafts are all made of high-strength alloy steel, special heat treatment and 100% magnetic particle inspection, tested via 1.25× rated load static test, ensuring lifting safety in metallurgical heavy-load high-temperature environments; equipped with multiple safety devices such as anti-fall pawls and anti-rope-off baffles, preventing sling unhooking and wire rope .
Specially designed for metallurgical cranes, the crossbeam is rigidly connected to the metallurgical crane trolley frame with uniform force and strong load capacity; pulley set reeving ratio 4~12, can amplify lifting force by 4~12 times, adapting to 10t~320t large-tonnage high-temperature heavy object lifting; pulleys are made of cast steel, with precision-machined rope grooves, good fit with wire rope, stable operation, wear-resistant and durable, suitable for metallurgical 24-hour continuous heavy-load operation.
Equipped with multi-layer heat insulation protection devices such as heat insulation plates, heat radiation baffles and high-temperature resistant protective covers, effectively protecting pulleys, bearings, wire ropes and other components; the protective cover is equipped with a detachable inspection cover, allowing inspection of pulley, bearing and wire rope status without overall disassembly, convenient for maintenance; bearings adopt high-temperature resistant grease, with long lubrication cycle, greatly reducing maintenance cost and downtime in metallurgical high-temperature environments.

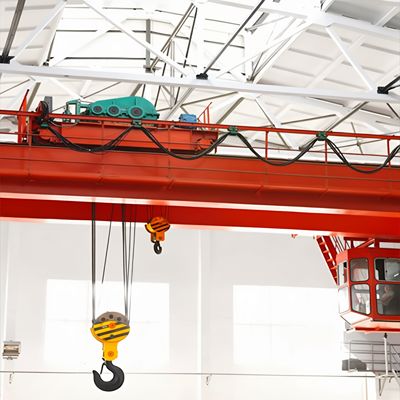

Can be used with various metallurgical special lifting equipment such as casting cranes, charging cranes, stripping cranes, steel ladle cranes and forging cranes, compatible with 10t~320t various tonnages; some models are equipped with a hook rotation device to facilitate steel ladle flipping and pouring; can customize heat insulation grade, number of pulleys, reeving ratio and hook type according to user needs, widely used in metallurgical industries such as steel mills, foundries, rolling mills and non-ferrous metal smelters, serving as an ideal lifting device for high-temperature heavy object lifting.
Specification
| Parameter | 10~32t | 50~100t | 160~200t | 250~320t |
| Rated Capacity | 10/16/20/32t | 50/80/100t | 160/200t | 250/320t |
| Number of Pulleys | 4 pcs | 6-8 pcs | 8-10 pcs | 10-12 pcs |
| Reeving Ratio | 4 | 6-8 | 8-10 | 10-12 |
| Wire Rope Dia | 14-18mm | 18-24mm | 24-32mm | 32-40mm |
| Pulley Dia | 350-500mm | 500-710mm | 710-1000mm | 1000-1250mm |
| Hook Type | single hook double hook | double hook | double hook | double hook |
| Safety Factor | ≥5 | ≥5 | ≥5 | ≥5 |
| Radiant Heat Temp | ≤300C | ≤300C | ≤300C | ≤300C |
| Hook Material | 20CrMnTi 42CrMo alloy steel | Same as left | Same as left | Same as left |
| Pulley Material | cast steel | cast steel | cast steel | cast steel |
| Crossbeam Material | 40Cr 42CrMo alloy steel | Same as left | Same as left | Same as left |
| Heat Insulation Device | heat insulation plate heat radiation baffle | Same as left | Same as left high temperature protective cover | Same as left |
| Anti-fall Device | anti drop pawl anti rope shedding baffle | Same as left | Same as left | Same as left |
| Hook Rotation | optional | optional | std | std |
| Weight | 0.5-1.5t | 1.5-4t | 4-8t | 8-15t |
| Applicable Crane | 10-50t Metallurgical Crane | 50-100t Metallurgical Crane | 100-200t Metallurgical Crane | Above 200t Casting Metallurgical Crane |
