Introduction

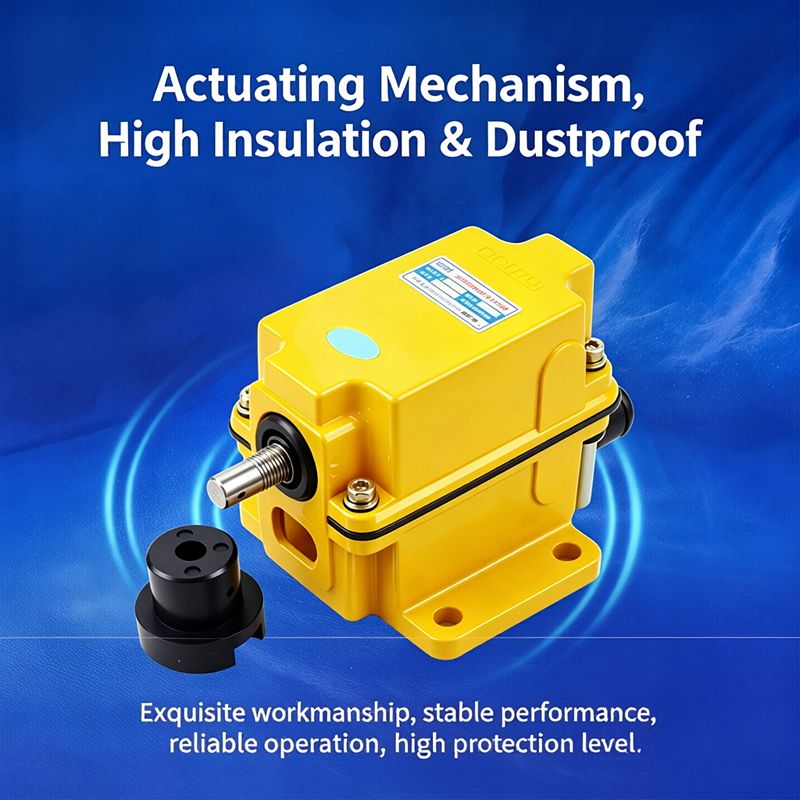

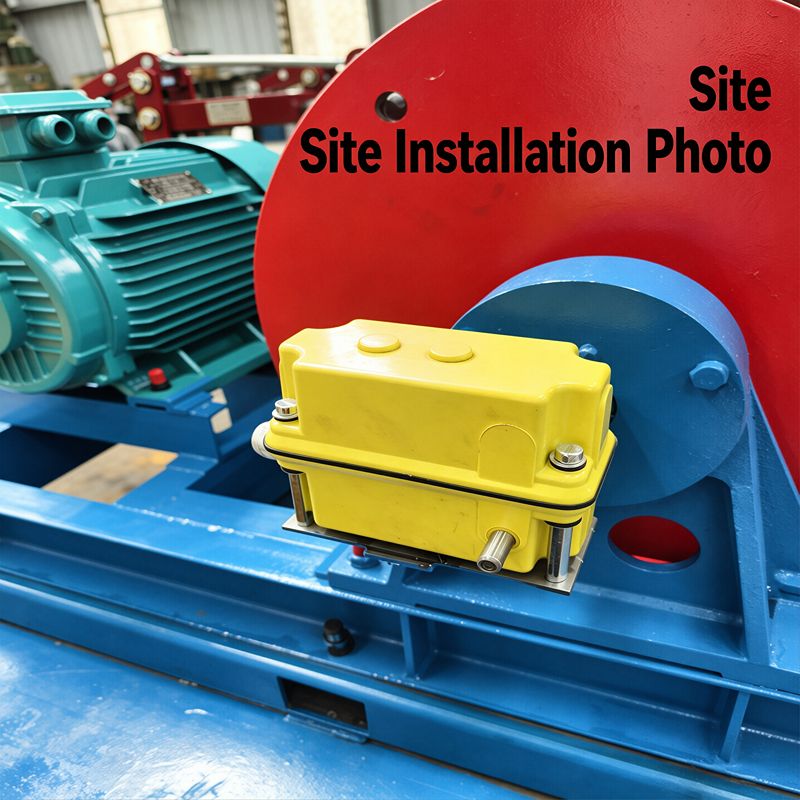

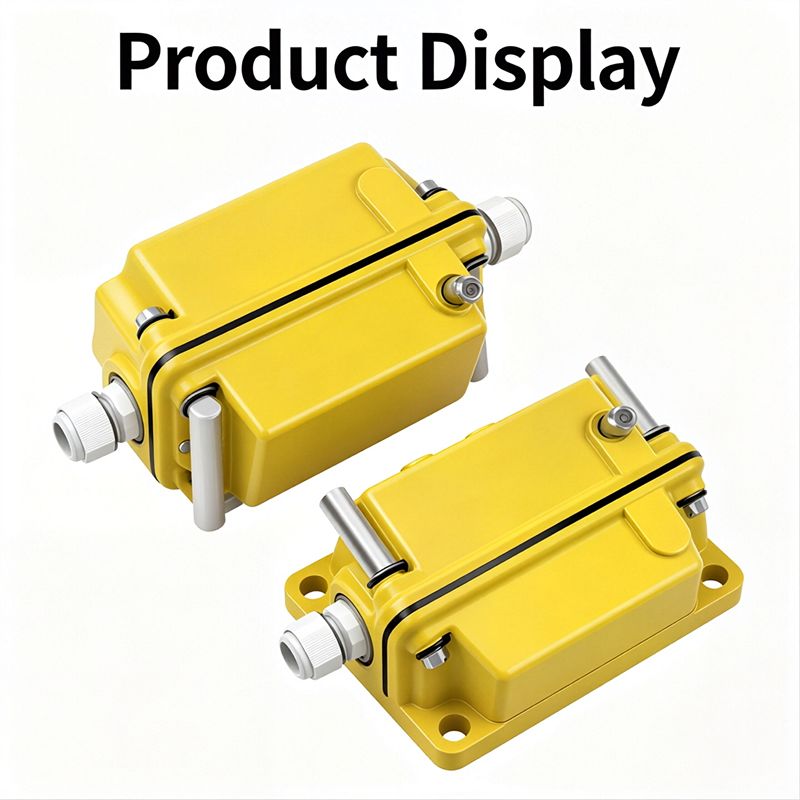

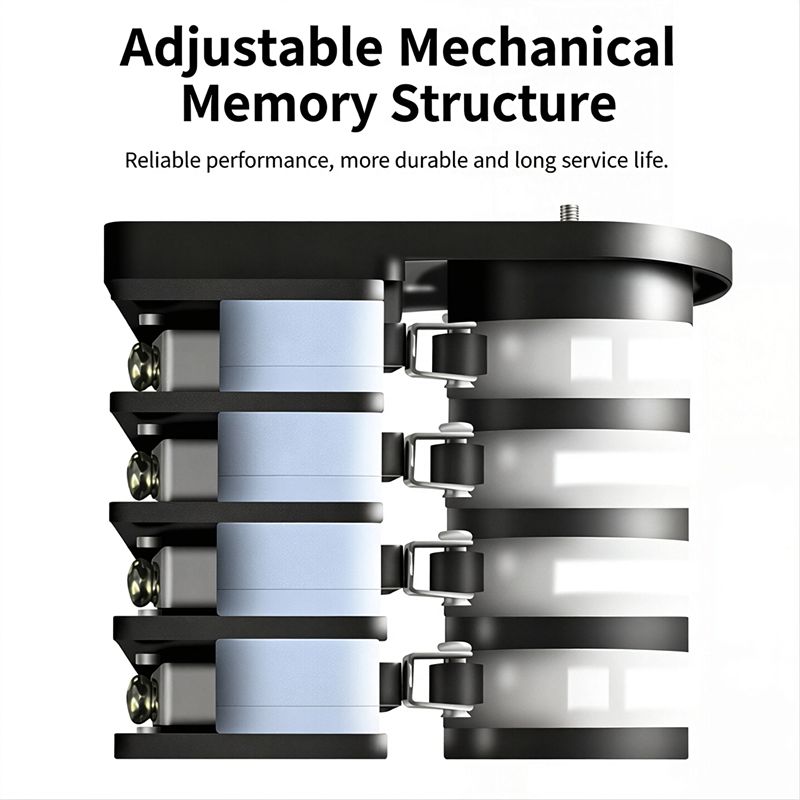

The multi-function travel limit switch consists of a transmission mechanism, cam group, micro-switches and housing, installed at the hoisting drum shaft end or traveling mechanism drive shaft, rotating synchronously with the mechanism. Cam angles can be flexibly adjusted via screws or dials; each cam corresponds to one micro-switch, allowing separate setting of upper limit, upper deceleration, lower deceleration, lower limit and over-travel protection points. The product adopts a fully sealed cast aluminum housing with protection grade IP65; internal gears are quenched for wear resistance and durability. Some models integrate a rotary encoder, simultaneously outputting height pulse signals to achieve both limit and metering functions. Widely used in hoisting and traveling mechanism stroke protection of electric hoists, bridge cranes and gantry cranes, serving as one of the essential safety devices for lifting machinery.
Our Advantage
Providing 4~6 independent limit circuits, allowing separate setting of upper limit, upper deceleration, lower deceleration, lower limit and over-travel protection, meeting full-stroke safety control needs of crane hoisting and traveling mechanisms.
Offering various transmission ratio specifications from 1:15 to 1:480, flexibly selectable according to drum diameter, lifting height and traveling stroke, ensuring limit adjustment range covers full stroke, compatible with 0.5t~100t various lifting equipment.
Adopting pure mechanical structure of gear transmission + cam-triggered micro-switches, with strong anti-interference, unaffected by electromagnetic radiation and voltage fluctuation; internal gears are quenched, with service life over 10 years.
Cam angles can be quickly adjusted via screws or dials without special tools, with repeat positioning accuracy ±1°; during debugging, each point can be precisely set, ensuring accurate and reliable limit positions and avoiding over-hoisting or over-travel accidents.

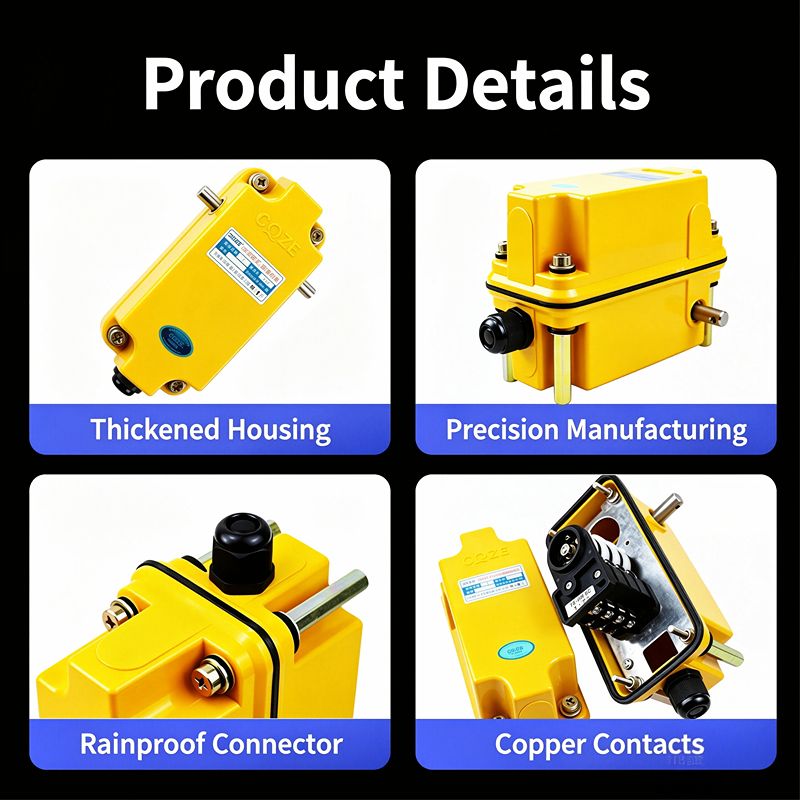

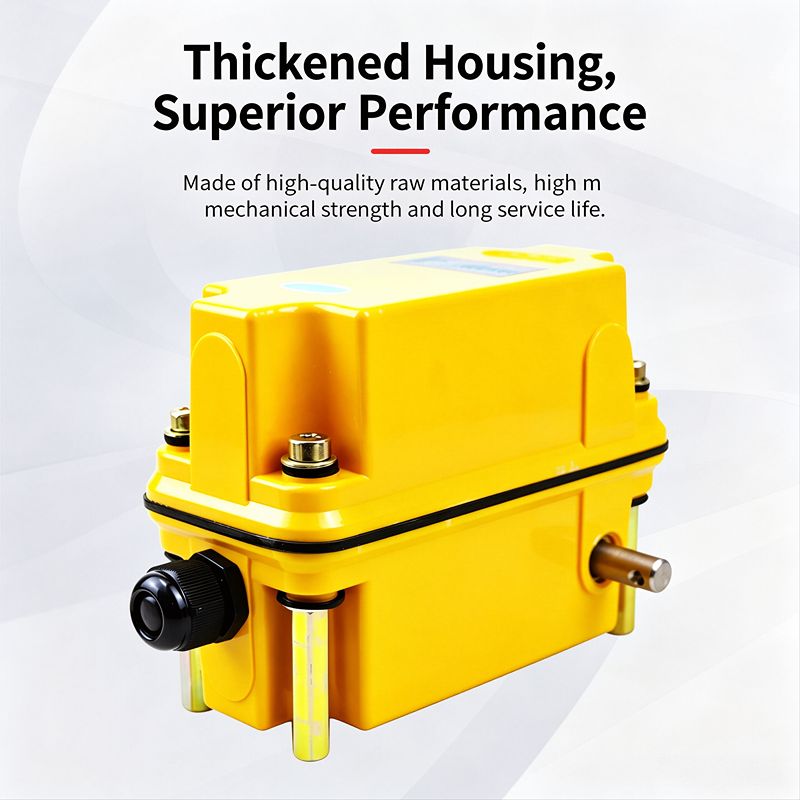

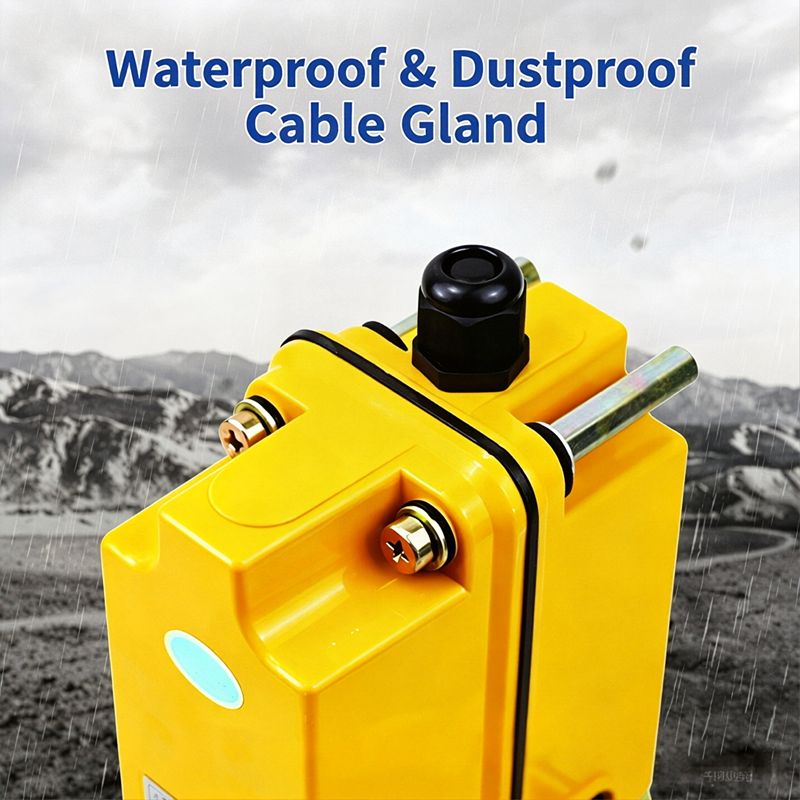

Cast aluminum housing with fully sealed design and protection grade IP65, dust-proof, moisture-proof and oil-proof; internal components completely isolated from the outside, maintaining stable operation even in dusty and humid harsh environments such as metallurgy, foundry and ports.
Specification
| Parameter | 0.5~5t | 10~20t | 32~50t | 80~100t |
| Applicable Capacity | 0.5/1/2/3/5t | 10/16/20t | 32/50t | 80/100t |
| Limit Circuits | 4 circuits (standard) / 6 circuits (optional) | Same as left | Same as left | Same as left |
| Transmission Ratio | 1:15 ~ 1:60 | 1:30 ~ 1:120 | 1:60 ~ 1:240 | 1:120 ~ 1:480 |
| Repeat Accuracy | ±1° | ±1° | ±1° | ±1° |
| Input Speed | ≤1500 rpm | ≤1000 rpm | ≤600 rpm | ≤300 rpm |
| Micro-switch Rating | AC 380V / 5A | AC 380V / 5A | AC 380V / 10A | AC 380V / 10A |
| Contact Form | 1NO+1NC (per channel) | Same as left | Same as left | Same as left |
| Installation | shaft connection / flange mounting | Same as left | Same as left | Same as left |
| Encoder Integration | optional (100~1000ppr) | Same as left | Same as left | Same as left |
| Housing Material | cast aluminum | Same as left | Same as left | Same as left |
| Protection Degree | IP65 | IP65 | IP65 | IP65 |
