Introduction

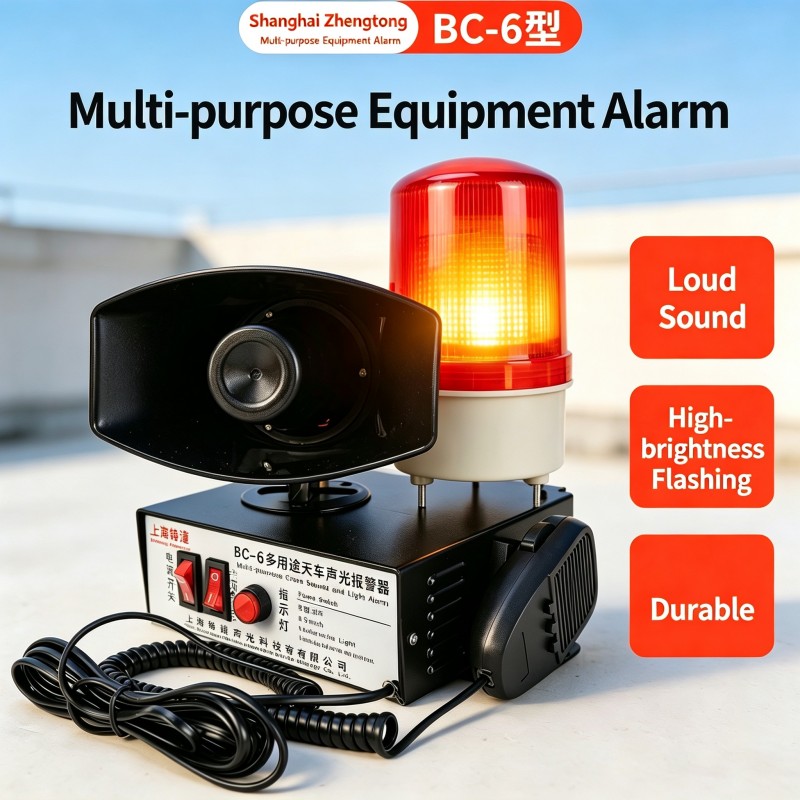

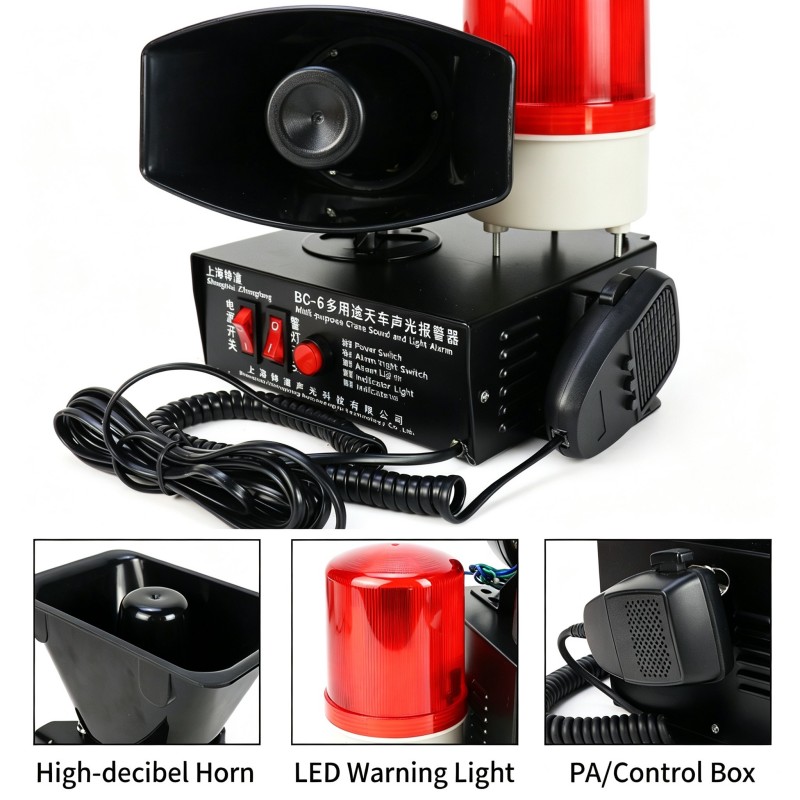

The multi-purpose combined audible-visual-megaphone alarm consists of an LED warning light, buzzer, power amplifier, horn, microphone interface and control circuit, integrally installed on the crane end beam or top of the cab. During normal operation, LED strobe + buzzer alarm reminds ground personnel to evacuate; when command is needed, the operator speaks in real-time via an external microphone, and the sound is amplified by the power amplifier and broadcast through the horn, covering 20~200m; the device can also pre-record voice prompts such as “Crane starting, please note” and “Working, do not approach”, playing automatically in loop or on trigger. The product adopts a high-power horn and high-sensitivity microphone, with clear voice and strong penetration; the housing adopts cast aluminum or steel plate welding with protection grade IP65. Some models support Bluetooth/wireless microphone, MP3 voice input and multi-channel switching, serving as an integrated solution for safety warning and on-site communication in large lifting occasions.
Our Advantage
Integrating LED strobe audible & visual alarm, microphone real-time megaphone and pre-recorded voice broadcast, one device replaces alarm + amplifier + broadcast system, reducing installation space and wiring cost, with comprehensive functions and high cost-effectiveness.

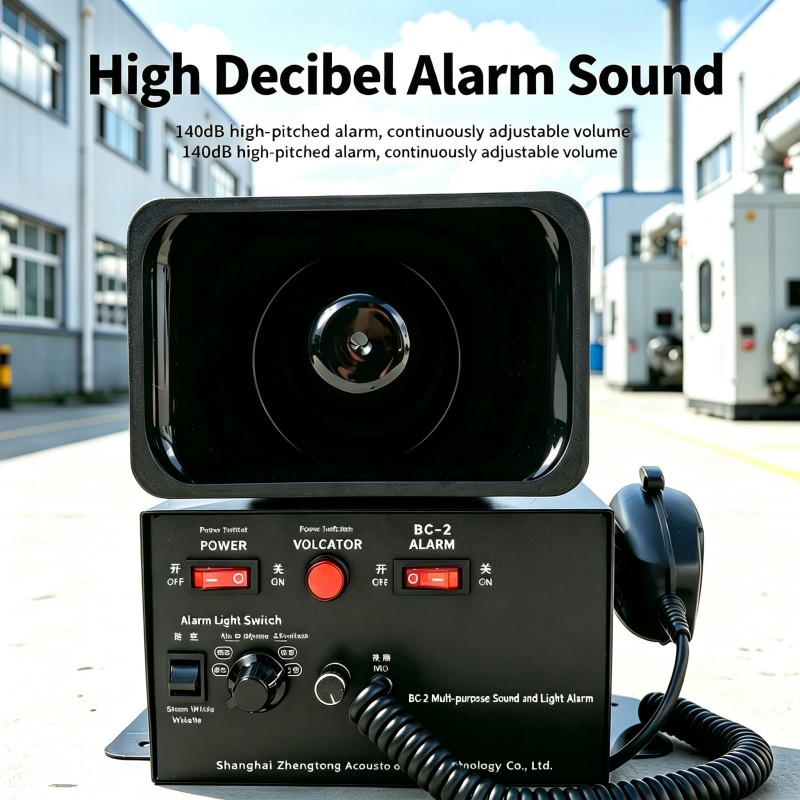

Adopting 15~200W high-power amplifier and high-efficiency horn, volume reaches 100~140dB, megaphone coverage distance 20~200m, with clear voice and strong penetration, effectively conveying warnings and instructions even in noisy and open environments such as large workshops, ports and mines.
Built-in voice storage module can pre-record multiple safety prompts, supporting automatic loop playback or trigger playback, such as “Crane starting, please note” and “Working, do not approach”, eliminating the need for repeated manual megaphone and improving the standardization and continuity of safety warnings.
Supporting various methods such as wired microphone, wireless microphone, Bluetooth, MP3/USB audio input, flexibly selectable according to site needs; microphone plug-and-play with simple operation, meeting multi-scene needs such as real-time command, broadcast notification and music playback.
Cast aluminum or steel plate welded fully sealed housing with protection grade IP65, dust-proof, moisture-proof, oil-proof and impact-resistant; internal amplifier circuit with overheat and overcurrent protection, ensuring long-term stable operation and long service life in harsh environments such as metallurgy, foundry and ports.
Specification
| Parameter | 0.5~5t | 10~20t | 32~50t | 80~100t |
| Applicable Capacity | 0.5/1/2/3/5t | 10/16/20t | 32/50t | 80/100t |
| Power | 15~30W | 30~60W | 60~100W | 100~200W |
| Sound Level | 100~110dB | 110~120dB | 120~130dB | 130~140dB |
| Megaphone Distance | 20~50m | 50~100m | 100~150m | 150~200m |
| Light Source | High-brightness LED | Same as left | Same as left | Same as left |
| Flash Frequency | 1~3Hz (adjustable) | Same as left | Same as left | Same as left |
| Light Color | Red / Yellow / Blue (optional) | Same as left | Same as left | Same as left |
| Microphone Input | Wired / Wireless / Bluetooth (optional) | Same as left | Same as left | Same as left |
| Voice Storage | Built-in Flash (recordable) | Same as left | Same as left | Same as left |
| Working Voltage | DC12V/24V/AC220V/380V (optional) | Same as left | Same as left | Same as left |
| Housing Material | Cast aluminum / Steel welded | Same as left | Same as left | Same as left |
| Installation | Bolt fixed / Magnetic attachment | Same as left | Same as left | Same as left |
| Protection Grade | IP65 | IP65 | IP65 | IP65 |
